Uszczelka pod głowicę HKS 2301-RT042 (stopper type) Toyota Supra, Chaser, Aristo, Lexus IS300, SC300 2JZ-GE, 2JZ-GTE 1.60 mm (śr. 88 mm)

Przeznaczenie: Toyota Supra, Chaser, Aristo, Lexus IS300, SC300 z silnikami 2JZ-GE, 2JZ-GTE

Metalowa uszczelka pod głowicę firmy HKS. Wykonana jest z wielowarstwowe metalu o specjalnym składzie, wyjątkowo odpornego na korozję oraz wysokie temperatury. Zewnętrzne warstwy pokryte są specjalną gumą w celu zapewnienia idealnej szczelności kanałów wodnych i olejowych.

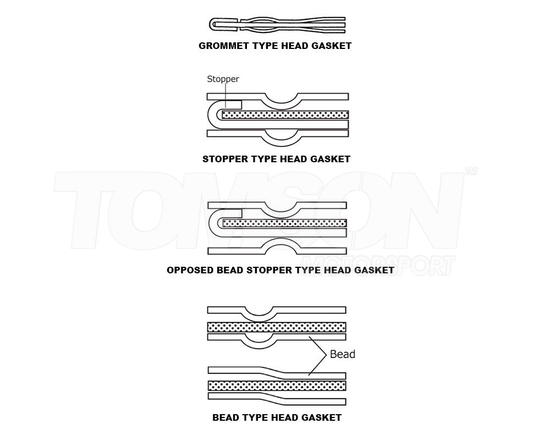

Grommet type head gasket

FA20 engine tuning through turbo and supercharging is becoming more and more popular. In these cases, many people will eventually experience the issue of head gasket failure.
To address this, HKS is pleased to announce the release of a new grommet type head gasket which takes things a step further than the existing stopper type gaskets.

Stopper type head gasket

A high pressure seal is formed around the combustion chamber through the use of stoppers which create a step within the gasket for optimum sealing. By making the stopper part of the plate also allows the fold to be smaller while maintaining structural integrity. One side of the plate is completely flat meaning that it can be layered with the stopper to allow stoppers to be used in even the tightest of locations around the combustion chamber forming a high quality seal. Compared with other gaskets of the same thickness, there are more layers in these gaskets giving flexibility which allows the gasket to maintain a good seal even when the engine tries to vibrate and move.

Opposed bead stopper type head gasket

If you don't have to worry about the distortion, you can use this to improve the sealing. This type is much better than bead type in matter of sealing. Opposed bead stopper type provide more balance in surface pressure.

Bead type head gasket

A bead is a type of spring used to maintain surface pressure which is very well suited to head gasket use. The beads are laid out to provide optimum pressure and seal around the combustion chamber. By carefully designing and adjusting the bead shape and heights, precise control of surface pressure is achieved for optimum results. Using a combination of 3 different types of beads allows maximum efficiency and performance.

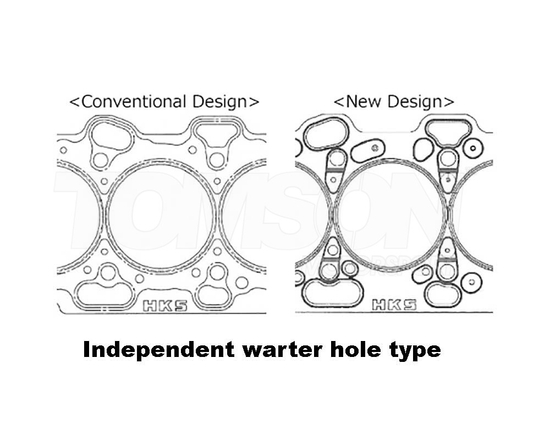

Independent warter hole type

Water holes and Head Bolt holes have "independent bead" that is the mainstream technology in motor racing. It reduces possibility of overheating even combustion gas leakage due to high horsepower. Because of the new design of bead shape around Head Bolt hole and water hole, crack around Head Bolt hole will be prevented.
