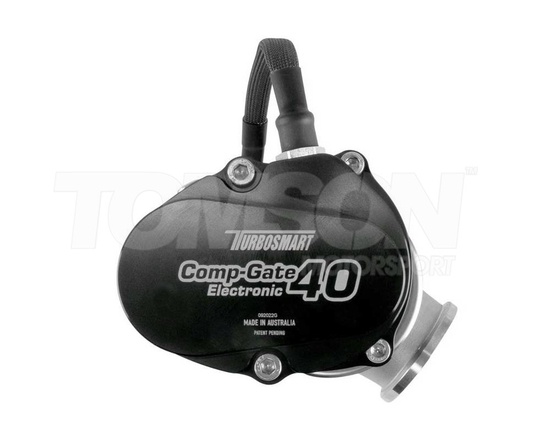

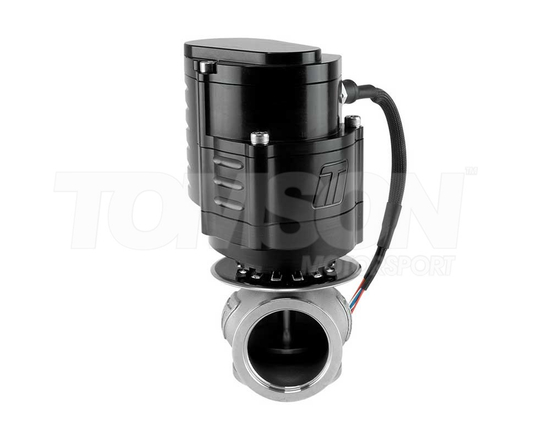

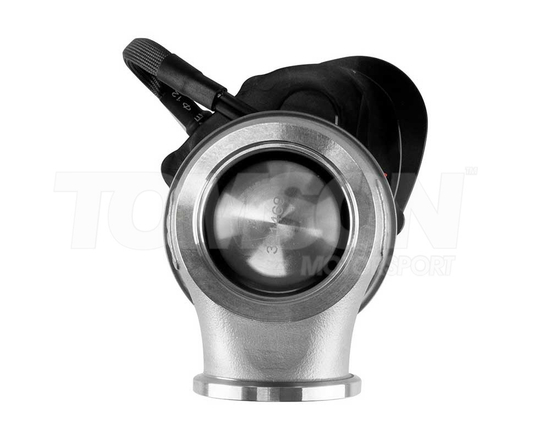

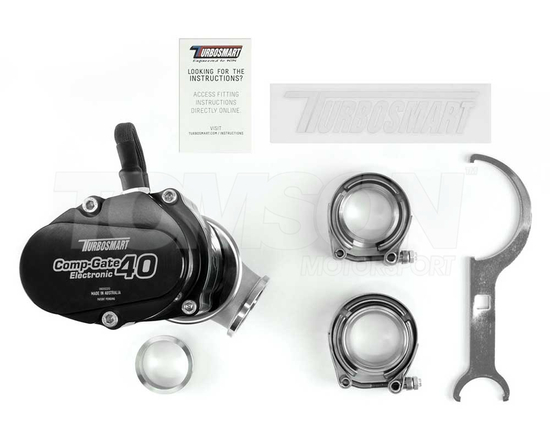

Elektroniczny zawór upustowy spalin (wastegate) Turbosmart TS-0552-1502 eWG40 Gen V Electronic CompGate40 (czarny)

Turbosmart’s Patent Pending, eWG40 is a fully electronic actuated wastegate – Built on the successful, class-leading GenV CompGate40 architecture, now with the kind of control never seen before. The eWG40 CompGate40 is a 40mm Electronic External Wastegate which uses full electroni control without the limitations associated with traditional pneumatic control.

Starting with a Turbosmart’s GenV wastegate body, you can be confident the mounting orientation will match your existing manifold & outlet hardware. The GenV CompGate40 already had class-leading flow capacity & heat handling characteristics. Now featuring the Turbosmart Patent Pending eWG actuator system, you can also be sure of unparalleled control.

There are no springs, no hoses, no boost reference signal, nor any associated limitations. Gone are ‘Minimum’ boost levels associated with base spring pressure or heat-related issues with hoses. If your manifold priority is good enough, you can set your boost anywhere from zero up to ‘All of it’ – All from your laptop or tuning interface. The eGate range requires a Dual Half-Bridge input for control, much like how an electronic throttle body is controlled and the strategy is as good as your imagination & your ECU or controller will allow.

Don’t have an ECU that has a spare Dual Half-Bridge Output? No problem at all, checkout the Turbosmart BlackBox Electronic Wastegate Controller with up to 2 independant channels via simple PWM inputs, or more advanced CAN based inputs – All onboard & in the one unit!

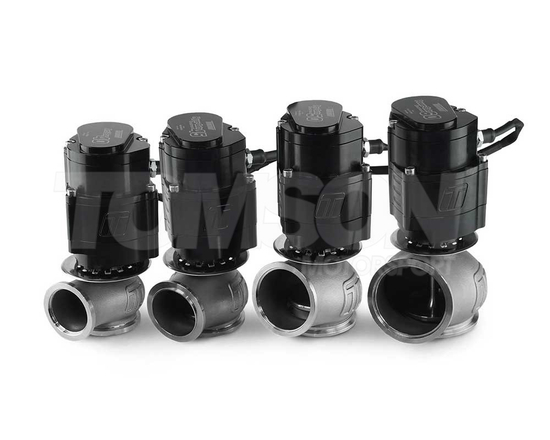

Available in:

• 40mm CompGate40 eWG – TS-0552-1502
• 45mm HyperGate45 eWG –TS-0553-1502
• 50mm ProGate50 eWG – TS-0554-1502
• 60mm PowerGate60 eWG –TS-0555-1502
• StriaghtGate50 eWG – TS-0565-1002

Features:

• Class Leading, CFD & Bench Validated Flow Performance
• Nitronic 60 Valve Guide & High Temp 347 SS Body
• Liquid Cooled, Electronic Actuator
• Strap Type V-band clamps
• User Adjustable Actuator Position
• Onboard Analog 0-5V Wastegate Position Sensor
• Onboard Analog 0-5V Actuator Temperature Sensor
• Onboard Digital (PWM) Wastegate Position Sensor
