MaxxECU 1792 exhaust gas temperature kit for MaxxECU MINI/STREET/SPORT

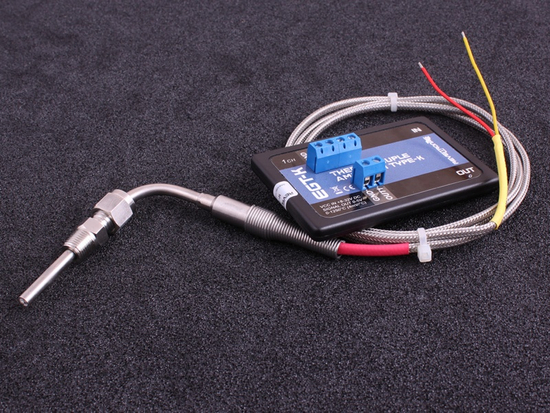

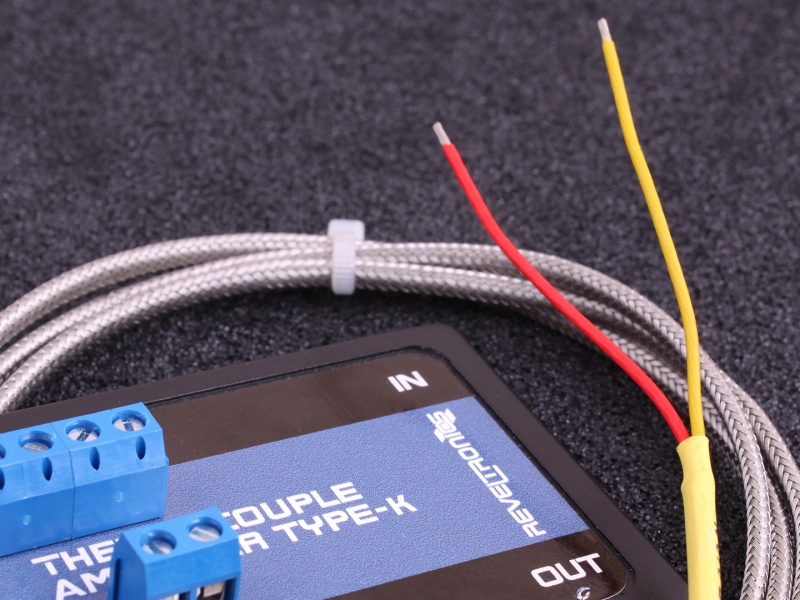

Includes both sensor and electronics for outputting 0-5v signal.

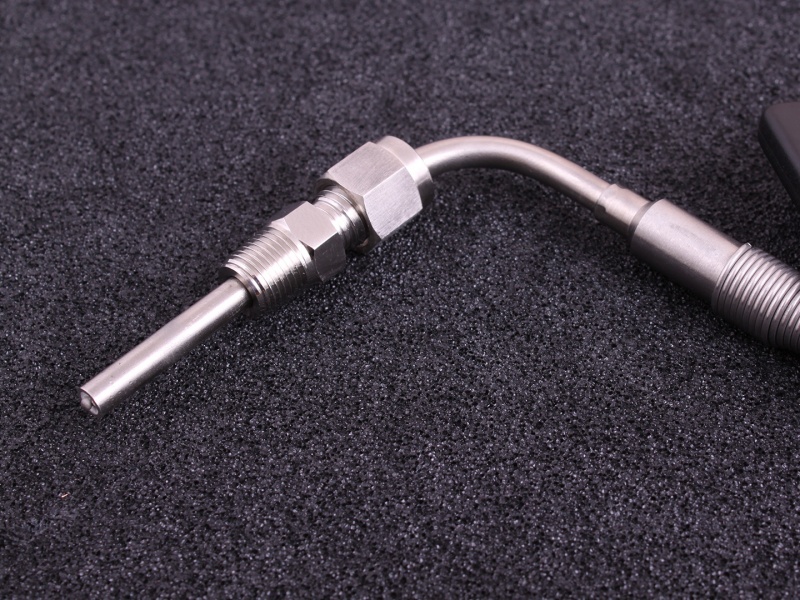

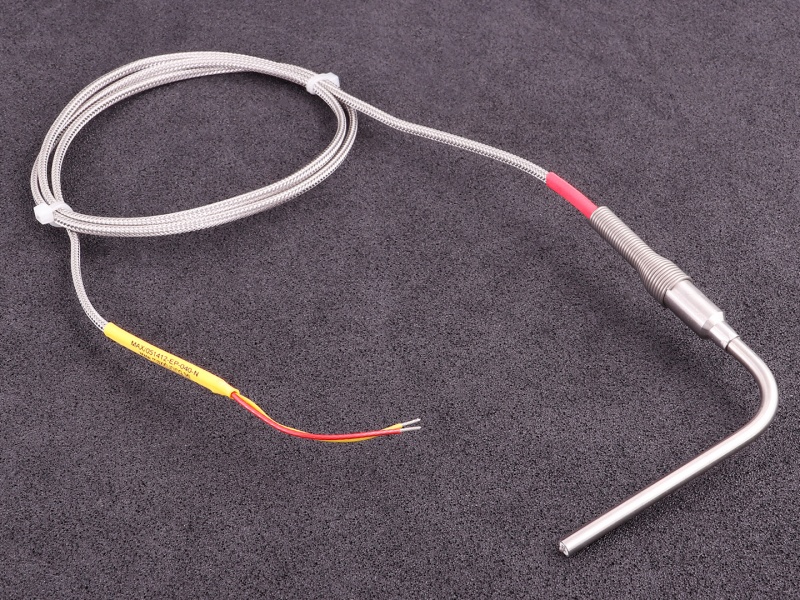

Signal for exhaust gas temperature measurement (EGT) with 1.8m cable. Mini type-k contact. 1/8 NPT.

Primarily designed to be connected directly to MaxxECU, but obviously works with other systems aswell.

4.7mm thickness of the sensor.

For tapered thread compression fitting to the stainless steel bung: about 2.5 turns to finger tight, then 3/4 of a wrench turn.

For tapered thread compression fitting to the mild steel bung: about 3.25 turn to finger tight, then 1 wrench turn.

What is important is that the threads do not leak. If the fitting is overtightened with a wrench, the fitting will be impossible to remove. It is important that the fitting is not overtightened.
