TTV Racing 2801 Series Compact Twin Plate Race Clutch 184mm (7.25″) with flywheel Toyota GR Yaris (Gen 1, Gen 2) (GXPA16), GR Corolla (GZEA14) 1.6 G16E-GTS

TTV Racing 2801 Series Compact Twin Plate Race Clutch 184mm (7.25″) with flywheel Toyota GR Yaris (Gen 1, Gen 2) (GXPA16), GR Corolla (GZEA14) 1.6 G16E-GTS
TTV Racing 2801 Series Compact Twin Plate Race Clutch 184mm (7.25″) with flywheel Toyota GR Yaris (Gen 1, Gen 2) (GXPA16), GR Corolla (GZEA14) 1.6 G16E-GTS
TTV Racing 2801 Series Compact Twin Plate Race Clutch 184mm (7.25″) with flywheel Toyota GR Yaris (Gen 1, Gen 2) (GXPA16), GR Corolla (GZEA14) 1.6 G16E-GTS
TTV Racing 2801 Series Compact Twin Plate Race Clutch 184mm (7.25″) with flywheel Toyota GR Yaris (Gen 1, Gen 2) (GXPA16), GR Corolla (GZEA14) 1.6 G16E-GTS
ProducerTTV Racing
Product codeTTV 184-7927-2801-08-003
Car make: Toyota
Engine code: G16E-GTS
1 873,41 EUR
1 816,59 EUR
/ set / incl. 23% VAT
Easy return of products within 14days
Free delivery from243,90 EUR
TTV Racing 2801 Series Compact Twin Plate Race Clutch 184mm (7.25″) with flywheel Toyota GR Yaris (Gen 1, Gen 2) (GXPA16), GR Corolla (GZEA14) 1.6 G16E-GTS
TTV Racing 2801 Series Compact Twin Plate Race Clutch 184mm (7.25″) with flywheel Toyota GR Yaris (Gen 1, Gen 2) (GXPA16), GR Corolla (GZEA14) 1.6 G16E-GTS

For: Toyota GR Yaris (Gen 1, Gen 2) (GXPA16), GR Corolla (GZEA14) 1.6 G16E-GTS

TTV Racing has been manufacturing special clutches for some time for OE applications and Race Series around the world. Their small multi-plate clutches have been engineered to exceed the performance levels required in their class without compromise. From stock they can offer a full range of race clutch sizes: 140mm, 184mm, 200mm and 215mm.

Uprated clutches are a must for fast road or track day vehicles. OEM clutches are not designed to cope with the extra heat generated from tuned engines or track days. This is where uprated clutches can help,  increased clamp loads and different materials on the friction plate means its performance will not deteriorate so quickly when hot.

It was pointed out to us by our customers time after time that the clutches being offered by others were not really correct for the vehicle application and torque seemed to be the defining factor. For example a race clutch for pure road use would be awful in traffic, yet nobody offered a road type clutch to suit this high torque. With forced induction cars being the majority market a quick and cheap remap can easily push a stock clutch outside of its working abilities.

Like our customers we soon saw the problems, and since then have spent considerable time designing and developing a range of high torque clutches for road and track day use where the driver requires a refined feel, lightweight clutch release and the ability to carry much higher torque than standard without having to opt for a race type clutch.

TTV Racing have pushed the road clutch boundaries with bespoke designs that incorporate the best materials and machining, taking our knowledge of race clutches and refining them for the road.

2801 Series – Twin Plate features:

  • For rally, tarmac and sprint applications.
  • Hi-tensile fixings & antivibration washers.
  • Hardened drive wear pads.
  • Chrome-moly pressure plate for high wear resistance.

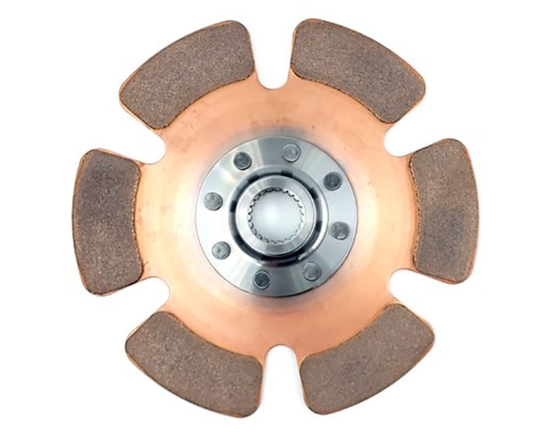

Drive Plates features:

  • Standard drive plate is 6 paddle.
  • High temperature friction materials with low wear rate.
  • Chrome-moly drive hub.
  • High strength rivets.
Producer
Product code
TTV 184-7927-2801-08-003
Clutch stage
Compact Twin Plate Race Clutch
Clutch disc type
Cerametalic 6-pad
Disc diameter
184 mm/7.25"
Torque capacity
742 Nm
Disc no.
2
Pressure plate type
Aluminium
Car make
Toyota
Car model
GR Yaris (Gen 1) (GXPA16)
,
GR Yaris (Gen 2) (GXPA16)
,
GR Corolla (GZEA14)
Engine code
G16E-GTS
12 months guarantee
