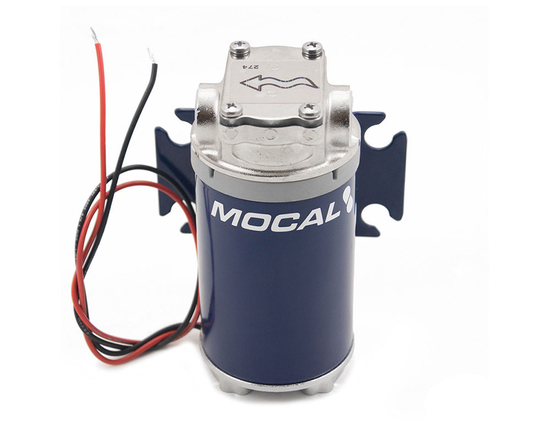

Mocal EOP2 universal electric oil pump (12V)

Mocal oil coolers are used for cooling gearboxes, crown wheel and pinion units, differentials and power steering pumps, here the primary problem is not so much concerned with avoiding bearing metal to metal contact, as in engine cooling, but in preventing loss of tolerances due to heat expansion of metals which in turn lead to greater friction resulting in a runaway spiral of heat build up.

Some gearboxes and all power steering pumps have an oil pressure system that can be tapped for oil flow otherwise a remote pump is required.When designing an installation these pumps require a switch, either heat actuated or manual, pumping cold oil is not recommended. Add extra oil to fill cooler, pump and pipes which must be at or below the normal oil level otherwise the oil level in the gear housing will be too high when the pump is switched off. When returning oil onto the gears do so after the point of contact to avoid pumping losses caused by cool oil. If difficulty is experienced in supplying ram air to an oil to air cooler we can supply a fan and housing. Use -6 (3/8" bore) hose.

Please note!: Pre-filtrer must be used!
