Syvecs SYV-4WDYaris24 PnP AWD controller Toyota GR Yaris (Gen 2) (GXPA16) 1.6 G16E-GTS
For: Toyota GR Yaris (Gen 2) (GXPA16) with 1.6 G16E-GTS engines
Introducing the new Syvecs Toyota YarisGR 2024+ AWD module which is a standalone AWD/4WD/Centre Diff controller designed to take full control of the AWD system in a YarisGR 2024+ .
OEM designed controllers are locked down and not adjustable, but by simply fitting our YarisGR AWD Module a whole new level of control is available and no more AWD instant drop outs on the circuit!
The Yaris GR version of the controller replicates all the OEM CAN information as well as pick up lots of variable from the OEM Can to link into the control strategies like Steering Angle, Brake Pressure, Rpm, Tps, Lateral G, Yaw, Long G, Speeds, Temperatures and mode switches
The Diff Mode Buttons on the YarisGR is used for Map switching so allows users to be able to change between Awd Select 1, 2 and 3 duty maps live to adjust the AWD clamping. You can also enable the burnout mode to be active when Hazards, Handbrake or external switch is active.

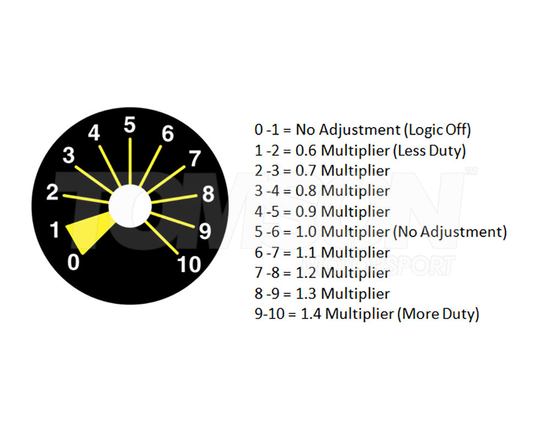

Syvecs also sell an optional loom to allow external Burnout switches to be mounted and Live adjustment potentiometers which gives drivers the ability to adjust the AWD Duty on the move or go 2wd from the flick of a switch. (Rally Cars only and must be ordered with the Unit)
Limp Protection options for large slip, high current, high temps which warn the driver but keep awd active unlike the OEM controllers which shut down the outputs which is not ideal with high horsepower or mid corner!

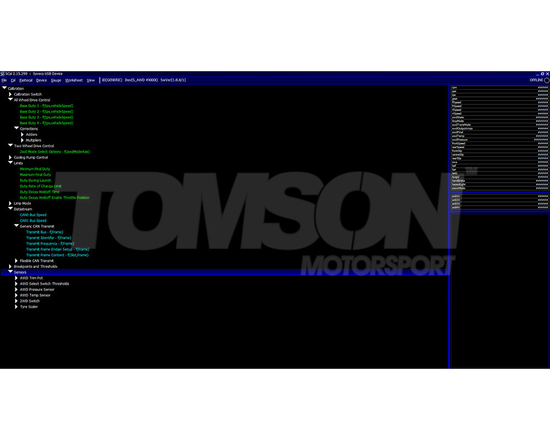

With the use of our Scal Software, users can connect to the Device and adjust over 40 maps to adjust the control of the solenoids/motors used in the AWD systems
Firmware and Software gets updated regularly, check out http://www.syvecs.com/forum/ to make sure you have the latest!
Some of the Maps available
- 4 x Base Duty Tables
- 4 x Adders with enable maps:
- Left Foot Braking
- Front Slip
- Rear Slip
- Centre Slip
- 4 x Multipliers with enable maps
- Steering Angle
- AWD Temp
- AWD Pressure
- AWD Potentiometer
- Tyre Diameter adjustment under sensors
- 2WD/ Burnout Mode
- Via Dedication Switched input
- Via Can bus Message
- Via OEM Functions
- Limiters
- Maximum Duty
- Launch Control Limit
- Duty Rate of Change
- Decay/Hold Functions
- Limp Mode
- Over Current Protection
- Over Slip Protection
- Over Temp Protection
- Cooling Pump control
- AWD Cooling pump control logic
Datastream
The Syvecs AWD Unit also has a dedicated Can bus transmit area where users can send variables from the AWD to external control units for monitoring or to OEM Canbus system via custom Identifiers and byte structuring
Sensors / Switches
External sensors can be connected to the AWD module and then linearized in our Scal Software.
