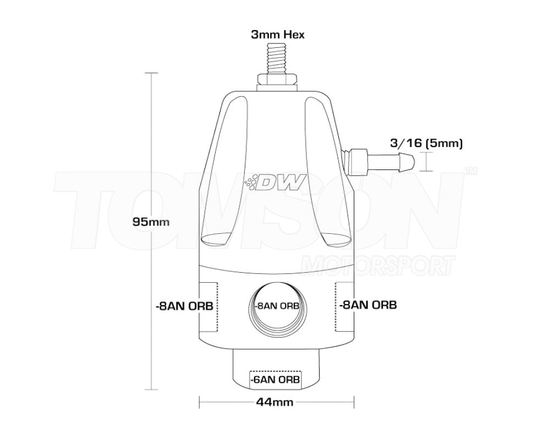

Deatschwerks 6-1000-FRB DWR1000 universal adjustable fuel pressure regulator inlet 4x AN-8 ORB, return 1x AN-6 ORB (2.07 bar - 8.28 bar)
DW Regulators provide the quaility, precision and reliability that your high performance fuel system requires to deliver stable AFR and optimum performance.
Adjustable fuel pressure regulators are simple mechanical devices that have not changed much over the decades and are often taken for granted. However, if you have ever experienced a failed diaphragm, fluctuating fuel pressure, or hot/cold start issues that inferior regulators can cause, you will appreciate the DWR1000 and DWR2000 adjustable fuel pressure regulators. Development of the DW regulators started with a comprehensive evaluation of the popular regulators already on the market. DW regulators were benchmarked against 5 of the leading regulators on the market and designed to outperform across multiple categories.
Designed with Ethanol in Mind
DW regulators were designed to be 100% compatible with ethanol based fuels. The corrosive nature of modern ethanol containing fuels will create significant issues for regulators that are not designed specifically for use in this environment. DW regulators utilize stainless steel hardware, nitrile-fiber diaphragms, anodized housings, and are, of course, 100% brass free in their construction.
Precision Pressure Adjustment
DW regulators incorporate several design features that allow precision pressure adjustment ranging from 30-100 PSI. The ball-bearing adjustment mechanism combined with a 2 psi-per-turn pressure ratio makes dialing in your desired target pressure an easy task. In addition, the massive 45mm diaphragm maintains that set pressure with unrivaled accuracy.
Full Line of Pressure Regulators to Fit All Needs
DW’s adjustable regulator offering includes everything you need nothing you don’t. By maximizing flexibility of bracket fitment and fuel line routing in each of our regulator models, we have created a line up consisting of just 5 models that fits virtually all needs… 200hp to 2,000hp, any fuel, EFI or Carb, -6, -8, and -10 feed lines. See the able below to find the DW regulator best for you...
The DWR1000 regulator is engineered to support EFI engines producing between 250HP and 1000HP. This regulator features the optimum balance of fitment versatility, premium construction, and precision performance. It is available in your choice of black or titanium finish.
Features:
- Precision performance and versatility of up to 1,000HP
- -8AN ORB inlets, -6AN ORB outlet
- Compatible with all fuels including methanol and ethanol
- 2 psi per turn precision ball bearing adjustment
- Multi-directional bracket for Installation flexibility
Specifications:
- Weight: 8.6 oz (244g)
- External Materials: Anodized T6061
- Hardware/Brackets: 300 Stainless Steel
- Tension Spring: Stainless Spring Steel
- Diaphragm: 35mm Fiber-Nitrile
- Pressure Range: 30-120psi
- Flow Rating: 500 LPH
- HP Rating: 1000 HP
- Gauge Port Fitting: 1/8" NPT*
- Inlet Ports: Quad -8AN ORB
- Outlet Ports: Single -6AN ORB
