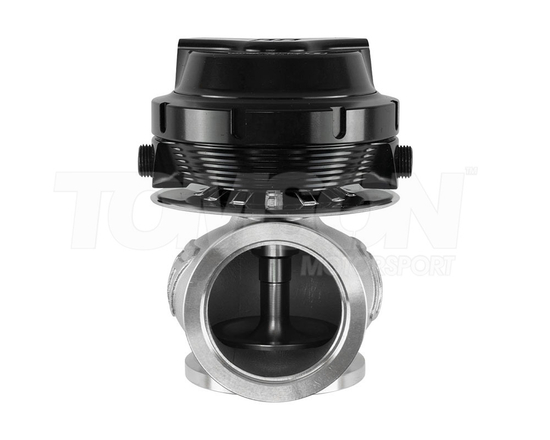

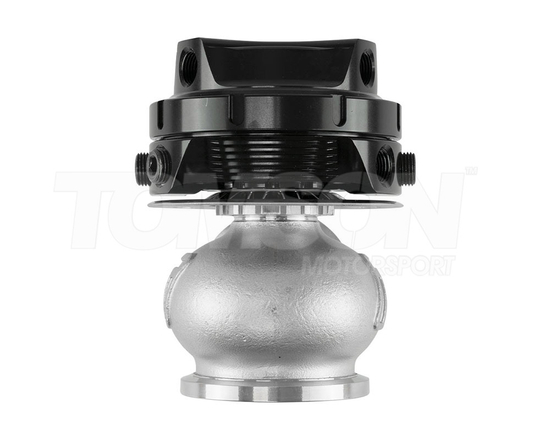

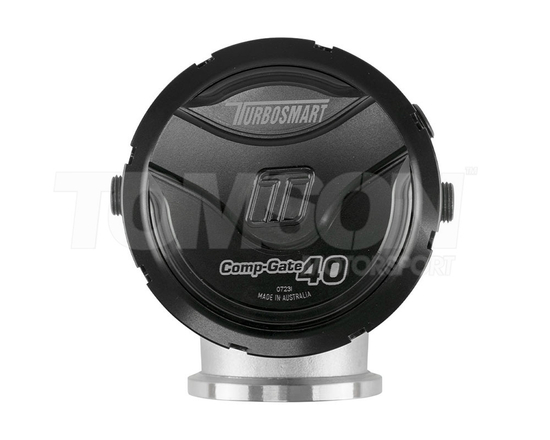

Turbosmart TS-0552-1015 Comp-Gate 40 mm GenV WG40 Sleeper version external wastegate 14 psi (black)
The GenV WG40 CompGate40 External Wastegate is a Motorsport-proven, cost-effective external wastegate – The Highest Flowing Wastegate of its kind. The GenV provides extensive user configuration, world-leading extended thermal performance, fatigue resistance and best-in-class flow performance for optimum control and longevity.
The GenV Range has more features, options and performance than any other gate. The GenV External Wastegate from Turbosmart was a ground-up rework of a classic, and the only feature that rolled over from the Gen4 range was the mounting orientation. CFD optimized and validated in-house for maximum flow and thermal management.
A direct fit upgrade to all Gen4 Turbosmart wastegates and feature our unique collar-locking system, variable actuator cap and base for easy, 360-degree optional routing of reference hoses, strap-type V-band clamps, optional liquid-cooling provision, 1/8″ NPT reference ports and are provided with the full range of available springs.

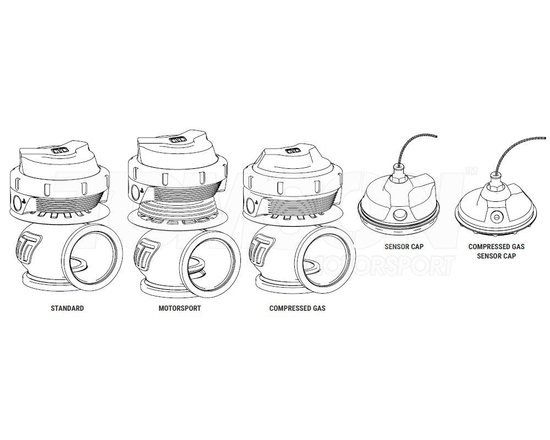

Available in:
- Black, Blue, Red, Purple & Sleeper colours
- Optional Wastegate Position Sensor Upgrade
- Compressed Gas (ex: Co2) Version
- Motorsport Version (CFD driven Heat sink design)
- HP (High-Pressure Version) Up to 50psi
- eWG (Electronic Actuated) Version

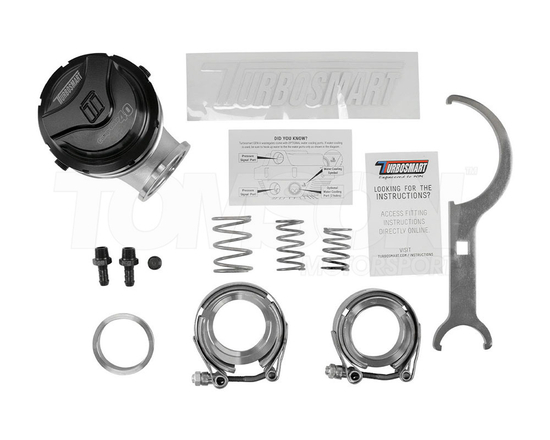

What's in the box:
- GenV Wastegate Unit

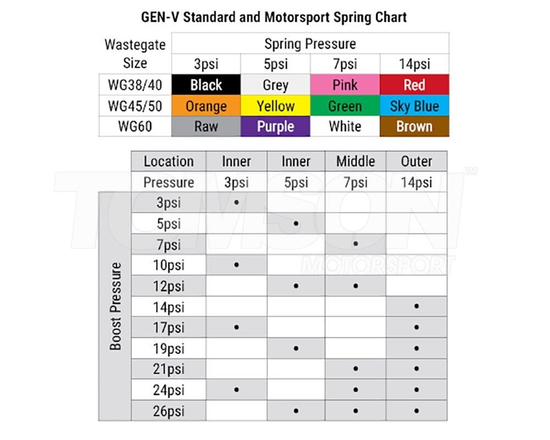

- All Springs Included
- (3,5,7,14 (1 Inst. As per Desciption)

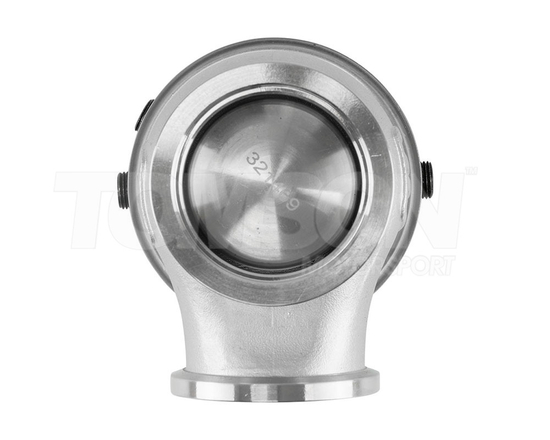

- GenV SS316 Valve Seat
- Strap Style V-Bands
- Inlet & Outlet Weld Flanges
- Hose Tail & Blank Fitting Kit
- Turbosmart Decal
