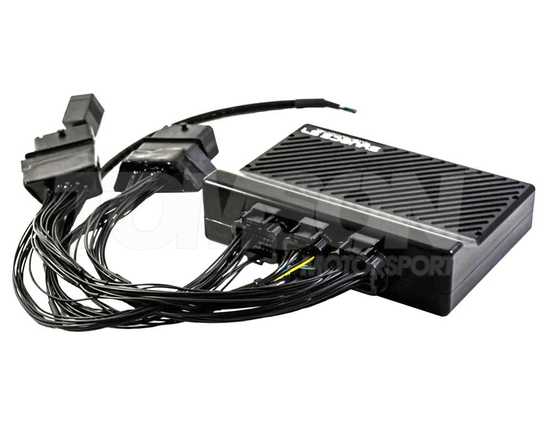

Syvecs S7Plus PnP stand alone ECU Yahama YXZ1000R

For: Yahama YXZ1000R

The Syvecs Yamaha YXZ Plug N Play Kit brings a new level of engine management control to the YXZ range with a complete standalone ECU for both the base and the SS paddleshift model. By simply pluging in the kit, a whole new level of control is available and the following Syvecs features become available:

Syvecs Yamaha YXZ Features:

• Flat Shift/GearCut if using a LoadCell sensor on base model
• Support for SS paddleshift model
• Flex Fuel control.
• Fully functional with every other ECU on the car.
• Closed loop Lambda control.
• DBW support with cruise control (Optional only if the correct parts are fitted)
• Rolling antilag / pit lane limiter strategies, great for building boost on a roll.
• Adjustable traction control strategies based on lateral G and individual wheel speed monitoring.
• Adjustable launch control.
• 12 switchable maps with the aility to select desired engine map, boost level, traction and launch control levels through an optional rotary switch
• Secondary injector option for 6 injector control
• Knock control when Bosch sensor is fitted
• Live tuning of every aspect of the engine’s calibration.
• Fully adjustable closed loop boost control with launch level adjustments and trims for turbo speed, air charge, engine coolant temp, exhaust gas temps etc..
• Built in data logging using a market leading analysis software of up to 8 hours, with data rates at up to 1000hz.
• Anti-theft and valet modes.
• Super fast connection via RJ45 Ethernet port for live tuning anywhere in the world or even remotely if on track if connected to a wireless unit.
• Configurable engine safety trips on all important parameters like oil temperature, oil pressure.
• Fuel pump control of both main, and sub pumps, as well as relative fuel pressure monitoring and limiting in the event of fuel pressure dropping on boost.
• Run up to 7bar map sensors.
• Control high or low impendence injectors.
• Ability to fit any type of external sensor to monitor and trigger safety trips from anything from crank case pressure to damper position.
• Ability to use any size DBW throttle body e.g. Chevrolet LS7.
• Wet and Dry – Wet and dry nitrous control with ability to drive solenoids directly and control n20 heaters via pressure monitoring.
• Ability to control any external vehicle features based on sensor inputs e.g. Adjustable rear wing linked to G force or exhaust control valves.
• Connect any race series dash or even one of our Syvecs edition SDM display units.
• View any input live with built in scope up to 1000hz.
• And much, much more!
