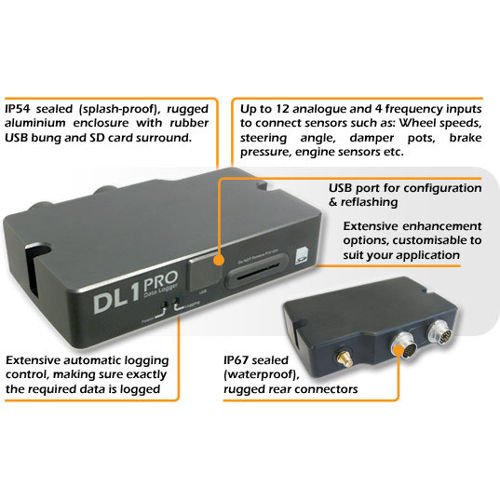

Race Technology datalogger DL1 PRO

Features of the DL1MK3 data logger

The DL1MK3 is an all-new, 3rd generation, data logger system from Race Technology. Whilst the DL1 builds on the strengths of our highly successful DL90 system, it is a brand new design in almost every respect. Some of the most noteworthy features include:
The new GPS unit is based on our own high accuracy GPS3 technology and calculates position and speed 5 times every second or 20 times every second with the optional 20 Hz GPS.
Built in 3-axis accelerometer with 2g full scale (optional 6g full scale).
Logging to SD card flash memory. Flash memory is robust, economical and offers fast download times and huge (up to 32GB cards compatible) capacity which is ideal for data logging products
12 analogue inputs. All the inputs are 12-bit accuracy (4096 different levels) and have a maximum input of 12v
2 RPM inputs, only one of which can be used at any one time. One for "high level" sources, such as the HT leads or the ignition coil. The other for low level signals from for example ECUs.
4 independent wheel or shaft speed inputs. These can be used to measure the speed of all four wheels, or slip ratios across a torque converter for example.
Serial data (RS232) input. The serial port can be configured to accept data from an external source - for example data from the ECU, OBDii or CAN data (with a suitable adapter)
Serial data (RS232) output. As well as logging the data to SD memory card it can also be streamed to other components in your vehicle’s data system.
Small and tough, at just 124mm x 73mm x 35mm (4.9" x 2.9" x 1.4") it can be fitted into the smallest single seater, motorbike or go kart.
Simple operation. A single button to start or stop logging, it's as simple as that! a remote button and status indicator can be added if required.
Power supply requirements. The power supply to the DL1 data logger can be taken directly from the vehicles 12v supply, or it can be powered from its own battery if required. The power supply is smoothed and regulated within the DL1 ensuring its performance is highly robust and stable.
Flash upgradeable firmware - as we add new features to the DL1MK3 you can upgrade yours to the latest specification for free.
