Garrett 860778-5002S G42-1200 Compact turbocharger (super core)
Introducing performance out of a package you never thought possible. This clean sheet product is tailored to meet the demands of hard core racing enthusiasts while providing industry leading power capability in a small package.
The G-Series G42-1200 turbocharger is compatible with 2.0L – 7.0L engine displacements and capable of producing up to 1200 horsepower. G Series 42 turbochargers are highly efficient and will outflow all comparable products on the market.
New compressor and turbine aero combined with high temperature resistant materials allowed engineers to push the limits of performance.
A new name designates a new generation of industry leading technology and innovation.
Understanding the Name:
G42-1200
G designates 81 years of Garrett® heritage.
42 classifies the size of the frame. The remaining 4 digits identify the max horsepower rating of the turbocharger. (ie 1200)
- GARRETT G SERIES COMPRESSOR AERODYNAMICS FOR MAXIMUM HORSEPOWER
- 73mm TURBOCHARGER COMPRESSOR INDUCER

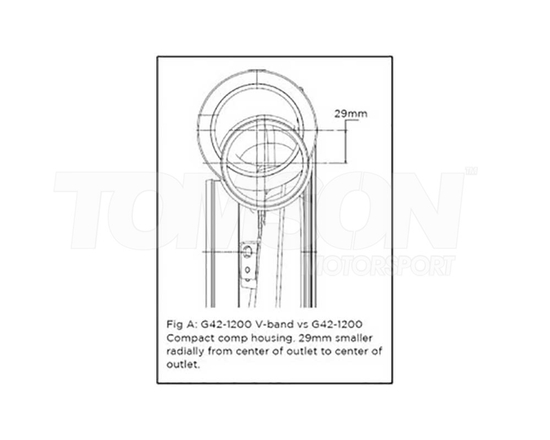

- COMPACT COMPRESSOR HOUSING SAVES SPACE
- FULLY MACHINED SPEED SENSOR AND PRESSURE PORTS
- NEW TURBINE WHEEL AERO FOR INCREASED EFFICIENCY AND FLOW
- STAINLESS STEEL TURBINE HOUSINGS IN V-BAND AND T4 CONNECTIONS
- WATER FITTINGS INCLUDED
- 1200 HORSEPOWER CAPABLE
- G42-1200 SUPERCORE PN: 860778-5002S
