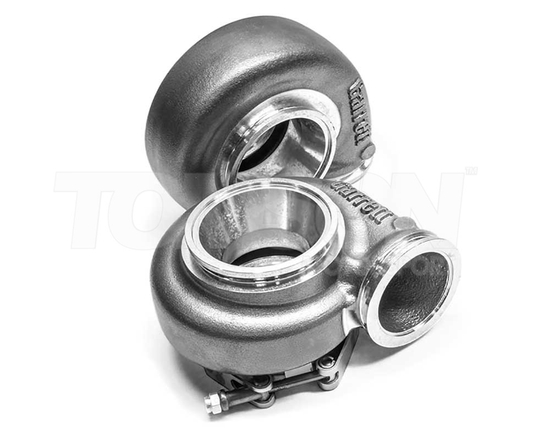

Garrett 757707-0030 G40-900, G40-1150 turbine housing kit A/R 1.19 inlet V-band, outlet V-band

All G Series Turbine housings are made from stainless steel to provide ultimate durability and temperature resistance up 1050°C. Internally wastegated housings are compact, efficient, and designed with maximum bypass port size to reduce boost creep and provide better boost control. Turbine housings are available in a variety of wastegated and non-wastegated, open volute, T4 and Vband configurations so be sure to order the correct part for your application.

G40 turbine housing kits are available in four A/R. 0.85 A/R | 0.95 A/R | 1.06 A/R | 1.19 A/R stainless steel housings with T4 divided inlet flange and V-Band Inlet. The largest 1.19 A/R T4 turbine housing flows 43 LBS/MIN of air which is a 16% increase over the GTX4088R turbine wheel.

• 3.62 inch (92.1mm) V-band inlet
• 4.62 inch (117.4mm) V-band outlet
