Garrett 860777-5003S G40-900 turbocharger (super core)
Introducing performance out of a package you never thought possible. This clean sheet product is tailored to meet the demands of hard core racing enthusiasts while providing industry leading power capability in a small package.
The G-Series G40-900 turbocharger is compatible with 2.0L – 6.0L engine displacements and capable of producing up to 900 horsepower. G Series 40 turbochargers are highly efficient and will outflow all comparable products on the market.
New compressor and turbine aero combined with high temperature resistant materials allowed engineers to push the limits of performance.
A new name designates a new generation of industry leading technology and innovation.
Understanding the Name:
G40-1050
G designates 81 years of Garrett® heritage.
40 classifies the size of the frame. The remaining 4 digits identify the max horsepower rating of the turbocharger. (ie 900)

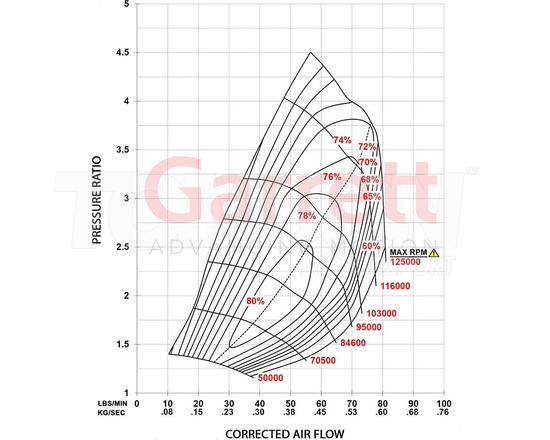

- G Series compressor aero increases flow up to 32% (compared to GTX4088R)
- 62mm and 71mm compressor inducer sizes
- Dual ceramic ball bearing with steel cages

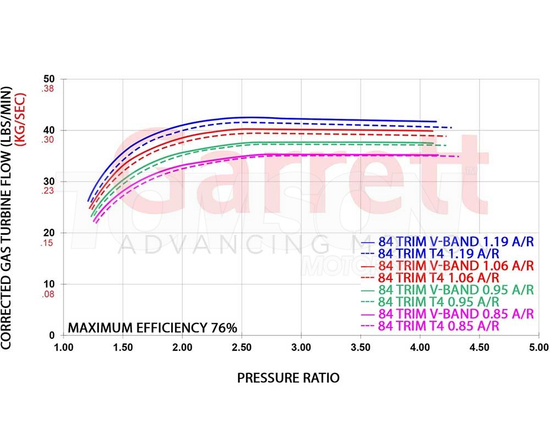

- G Series turbine aero increases flow 16% (compared to GTX4088R)
- Inconel turbine wheel with 77mm inducer flows up to 43 lbs/min
- Lightweight aluminum backplate
- Fully machined speed sensor and pressure ports
- Water fittings included with super core
- Stainless steel turbine housings available with V-Band and T4 twin scroll inlet
- T4 turbine housing outlet V-Band dimension (117.4mm | 4.622” OD) is equal to existing GTX42, GTX45 and G42 models
