Garrett 880704-5008S G30-900 turbocharger V-Band A/R 0.83 WG
Introducing performance out of a package you never thought possible. This clean sheet product is tailored to meet the demands of hard core racing enthusiasts while providing industry leading power capability in a small package.

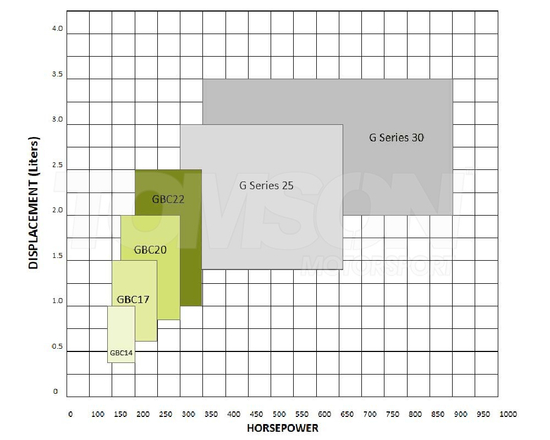

The G-Series G30-900 turbocharger is compatible with 2.0L – 3.5L engine displacements and capable of producing up to 900 horsepower. G Series 30 turbochargers are highly efficient and will outflow all comparable products on the market.
New compressor and turbine aero combined with high temperature resistant materials allowed engineers to push the limits of performance.
A new name designates a new generation of industry leading technology and innovation.
Understanding the Name:
G30-900
G designates 81 years of Garrett® heritage.
30 classifies the size of the frame. The remaining 3 digits identify the max horsepower rating of the turbocharger. (ie 900)
- G SERIES COMPRESSOR AERODYNAMICS FOR MAXIMUM HP
- 62mm TURBOCHARGER COMPRESSOR WHEEL

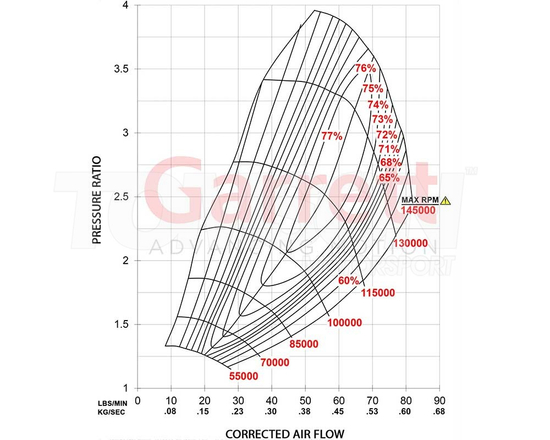

- 77% MAXIMUM COMPRESSOR EFFICIENCY
- MAR-M ALLOY TURBINE WHEEL RATED UP TO 1050° C

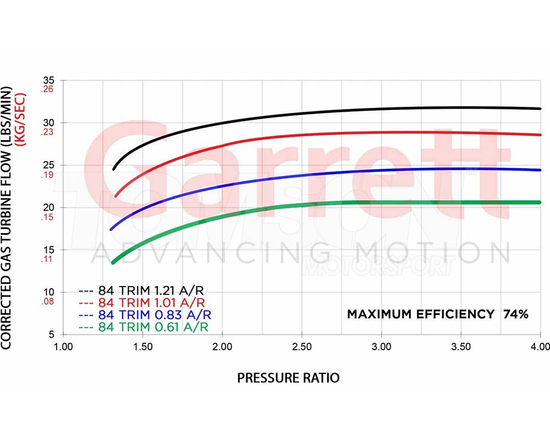

- NEW TURBINE AERO PROVIDES HIGHER FLOW AND EFFICIENCY

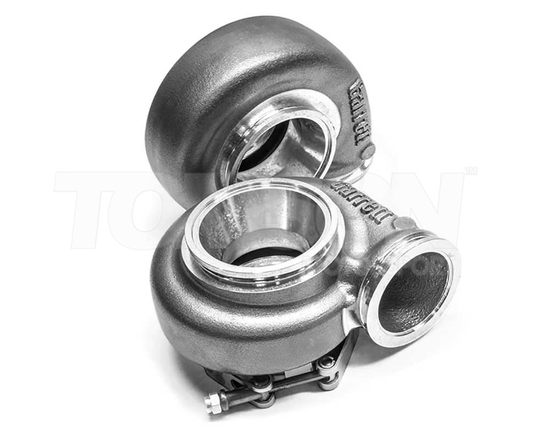

- STAINLESS STEEL TURBINE HOUSINGS RATED UP TO 1050° C
- OIL RESTRICTOR AND WATER FITTINGS INCLUDED
- FULLY MACHINED SPEED SENSOR AND PRESSURE PORTS
- TURBOCHARGER ASSEMBLIES ARE CALIBRATED WITH A 0.5 BAR ACTUATOR
- STANDARD ROTATION SUPERCORE 880693-5003S
- REVERSE ROTATION SUPERCORE 880694-5003S
