Garrett 877895-5001S G25-550 turbocharger T25 A/R 0.49 WG
Introducing performance out of a package you never thought possible. This clean sheet product is tailored to meet the demands of hard core racing enthusiasts while providing industry leading power capability in a small package.

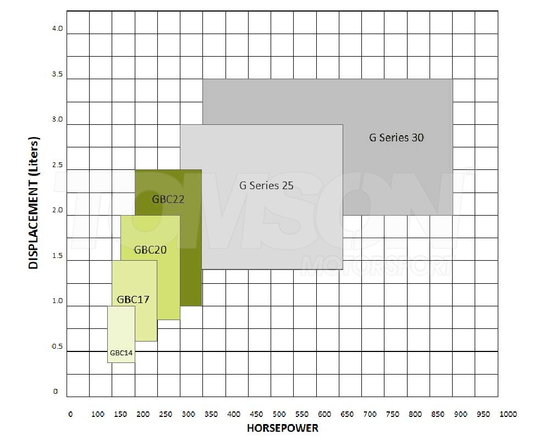

The G-Series G25-550 turbochargers are compatible with 1.4L – 3.0L engine displacements and capable of producing up to 550 horsepower. G Series 25 turbochargers are smaller and outflow all comparable products on the market.
New compressor and turbine aero combined with high temperature resistant materials allowed engineers to push the limits of performance.
A new name designates a new generation of industry leading technology and innovation.
Understanding the Name:
G25-550 || G25-660
G designates 81 years of Garrett® heritage.
25 classifies the size of the frame. The remaining 3 digits identify the max horsepower rating of the turbocharger. (ie 550)
- G SERIES COMPRESSOR AERODYNAMICS FOR MAXIMUM HP
- 48mm TURBOCHARGER COMPRESSOR WHEEL

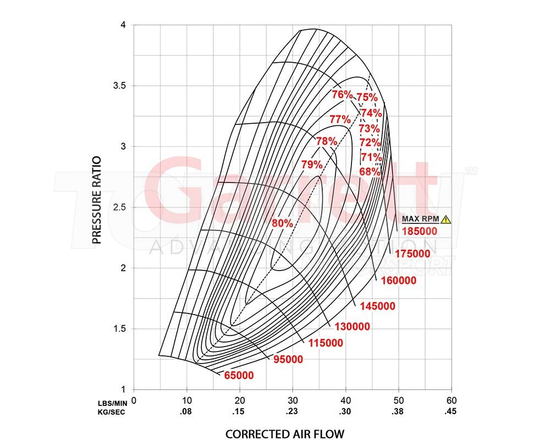

- 80% MAXIMUM COMPRESSOR EFFICIENCY
- MAR-M ALLOY TURBINE WHEEL RATED UP TO 1050° C

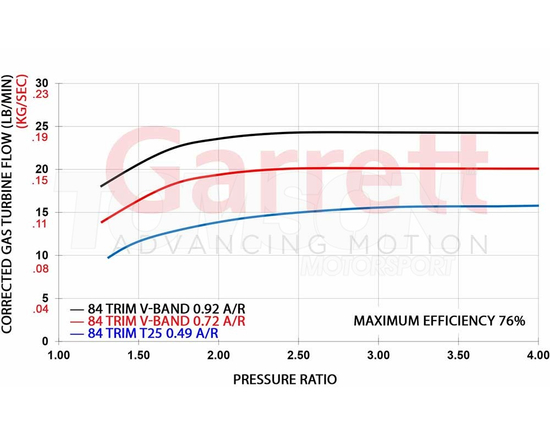

- NEW TURBINE AERO PROVIDES HIGHER FLOW AND EFFICIENCY
- TURBOCHARGER ASSEMBLIES ARE CALIBRATED WITH A 0.5 BAR ACTUATOR

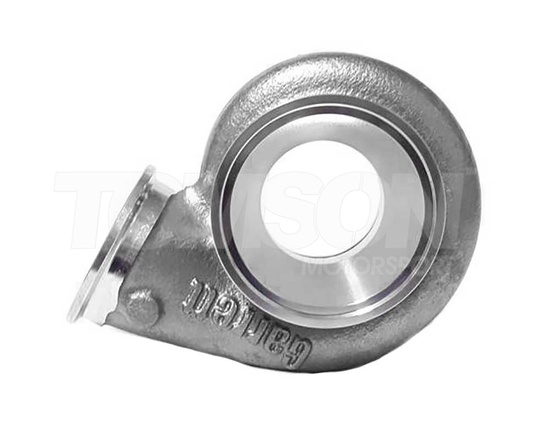

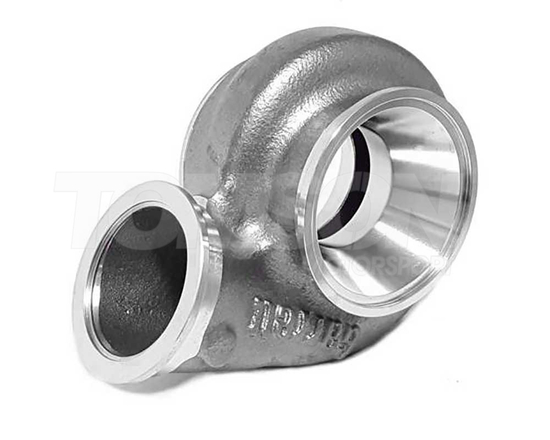

- STAINLESS STEEL TURBINE HOUSINGS RATED UP TO 1050° C
- OIL RESTRICTOR AND WATER FITTINGS INCLUDED
- FULLY MACHINED SPEED SENSOR AND PRESSURE PORTS
