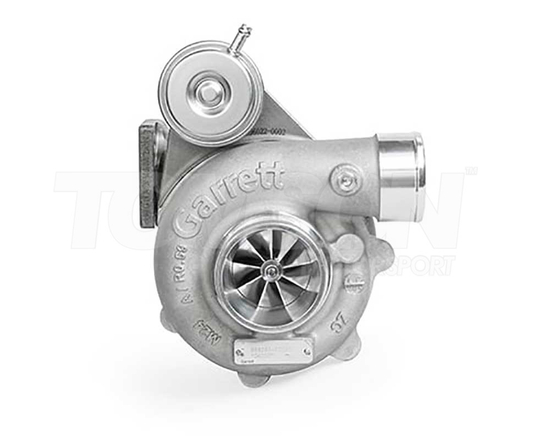

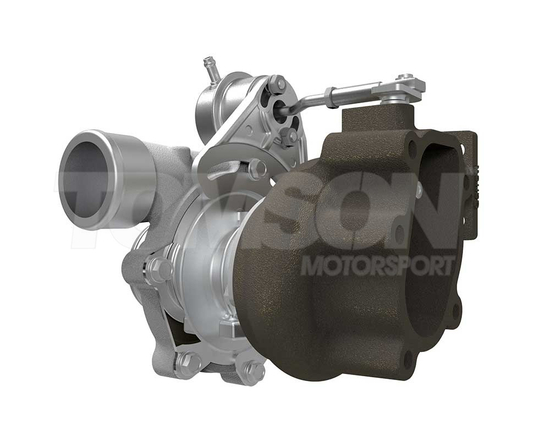

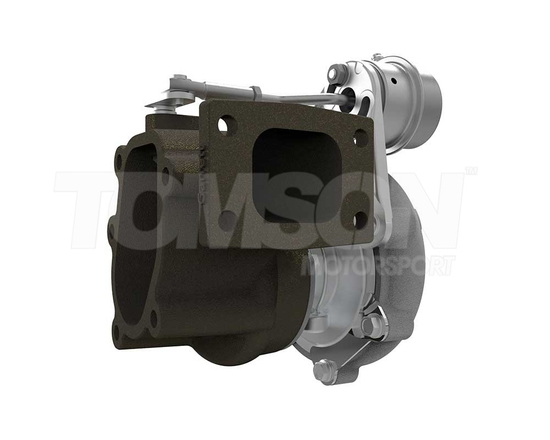

Garrett 896055-5003S Club Line GBC22-350 turbocharger T25 A/R 0.64 WG

Club Line is a product engineered for small engine displacements. This includes powersports, personal watercraft, and automobiles. These turbochargers feature internally wastegated turbine housings and journal bearing rotating groups. GBC stands for GARRETT BOOST | CLUB LINE. The first two numbers indicate the turbo frame size. The larger the number the larger the turbine wheel. The numbers following the dash indicate the peak potential flywheel horsepower rating. GBC22-350

• 44mm compressor inducer | 56mm compressor exducer
• Outline interchangeable with GBC 17 / 20
• 200-350 horsepower capability
• Integrated wastegate assembly with calibrated actuator
• Billet compressor wheel with extended tip design for higher pressure ratio capability
• GTX Gen II compressor aero with modern gasoline turbine wheel aero
• Supports up to 350 horsepower
• Forged Fully-Machined Compressor Wheel
• Journal Bearing Rotating Group
• Internally wastegated turbine housing
• Engineered for small displacement engines including powersports, personal watercraft and automobiles
