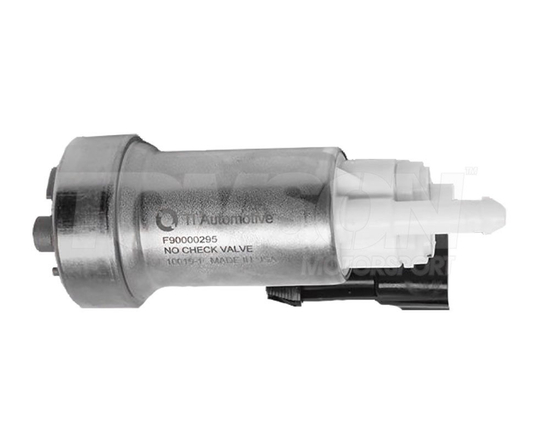

Walbro F90000295 E85 high pressure fuel pump 535 LPH (without installation kit)

The innovative design of the DCSS 39/50 features a single impeller with two parallel rows of turbine blades. Designed for E85 or gasoline applications. The blades feed two high-pressure pumping channels, as opposed to a conventional single-stage pump that uses an impeller with a single row of blades at its outer edge. This results in improved hot fuel flow, as well as minimal noise and current use, resulting in efficiency that’s 30 percent higher than conventional pumps.

This is the same fuel pump as the Walbro F90000285 "Hellcat" except it does not have a check valve integrated into the outlet. This permits more flow and less current draw making it perfect for a fuel surge tank "lift" pump.

Features:

• Highest flow in-tank brushed fuel pump offering from TI Automotive / Walbro
• No Internal check valve - ideal for racing applications to build oil pressure prior to start-up
• Featuring award winning DCSS technology
• E85 compatible
• High-pressure relief setting - supports supercharger and turbo applications
• Capable of supporting 900+HP at 60PSI naturally aspirated applications
• Flush mountable to existing hanger with installation kit 400-1168

Technical specification:

• Fuel: GAS & E85
• Horsepower: 900+ at 60PSI, naturally aspirated applications
• Over All Pump Length: 131mm
• Main Housing Diameter: 39mm
• Lower Housing Diameter: 50mm
• Fuel Inlet Diameter: 11mm OD
• Fuel Outlet Diameter: 11mm OD

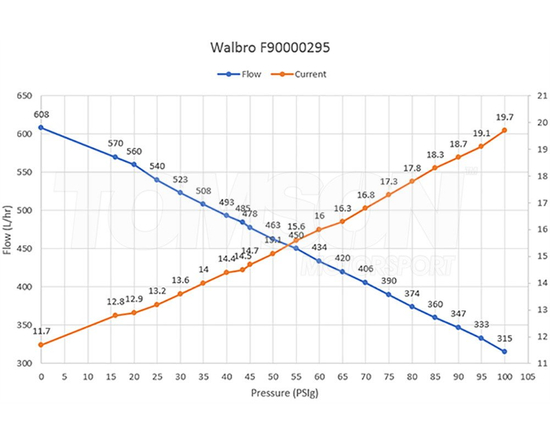

• Flow Rate: 535LPH at 40psi
• Test Voltage: 13.5 Volts

Note: Pump does NOT have a check valve

NOTE: All Power estimates are for 3 Bar of Fuel Pressure, and are HP and KW at the engine.
