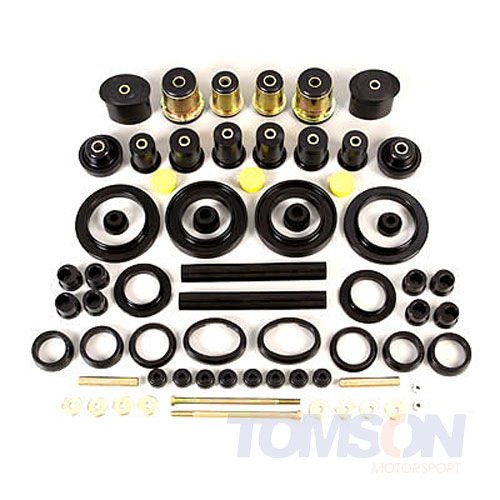

Energy Suspension 4.18112G HyperFlex Master Kit Ford Mustang 1994-1998

1994 - 1998 Ford Mustang Except 94-95 V8 - Use 4.18109

Front end control arm bushing set:
2 - 3267 lower control arm pivot bushing, front position
2 - "O" shell (use with 3267 bushing)
2 - 15.10.33.39 (7/8"O.D. x 5/8"I.D. x 3.187 sleeve)
2 - 3270 lower control arm pivot bushing, rear position
2 - 15.10.34.39 (7/8"O.D. x 5/8"I.D. x 3.00 sleeve )
NOTE: MUST REUSE REAR POSITION O.E. SHELL. DO
NOT REMOVE!
1 - 17019 installation instructions

Rear end control arm bushing set:
2 - 3027 lower control arm pivot bushing, axle end
2 - 3076 lower control arm pivot bushing body end (oval
shape)
4 - 15.10.171.39 (3/4"O.D. x .480"I.D. x 2.900
sleeve)lower arms
2 - 3028 upper control arm pivot bushing, body end
2 - 3029 upper control arm pivot bushing axle end
4 - 15.10.170.39 (3/4"O.D. x .480"I.D. x 2.400
sleeve)upper arms
1 - 17041 installation instructions
use 17019 installation instructions

Front spring isolator set:
2 - 6070 upper
2 - 6071 lower

Rear spring isolator set:
2 - 6053 upper
2 - 6054 lower

Front McPherson strut tower bushing set:
2 - 2215 bottom bushing
2 - 2214 top bushing
2 - 15.10.51.39 (7/8"O.D. x 5/8"I.D. x 2.125 sleeve)
1 - 17275 installation instructions

Front Swaybar endlink set :
8 - 4806 endlink grommets
2 - 15.10.75.39 (9/16"O.D. x 3/8"I.D. x 3.562" sleeve)
8 - 15.03.01.39 (cupped washer)
2 - 15.05.05.39 (3/8"-16 x 7.5" bolt)
2 - 15.07.01.40 (3/8"-16 nut)

Rack and pinion bushing set for stock height to 1-1/4"
lowered vehicles):
4 - 10003 bushing
1 - 17094 installation instructions

Offset rack and pinion bushing set for vehicles
lowered more than 1-1/4": (these offset rack bushings
help correct the bump steer caused by lowering the
vehicle):
4 - 10020 bushing
use 17094 installation instructions

Tie-rod boot set:
2 - 13001 tie-rod boot

Grease:
3 - 9.11101 grease tub
