Turbosmart TS-0801-1002 OPR T40 oil pressure regulator (oil restrictor) for turbochargers 40 psi (blue)

Turbosmart TS-0801-1002 OPR T40 oil pressure regulator (oil restrictor) for turbochargers 40 psi (blue)
Turbosmart TS-0801-1002 OPR T40 oil pressure regulator (oil restrictor) for turbochargers 40 psi (blue)
Turbosmart TS-0801-1002 OPR T40 oil pressure regulator (oil restrictor) for turbochargers 40 psi (blue)
Turbosmart TS-0801-1002 OPR T40 oil pressure regulator (oil restrictor) for turbochargers 40 psi (blue)
Turbosmart TS-0801-1002 OPR T40 oil pressure regulator (oil restrictor) for turbochargers 40 psi (blue)
Turbosmart TS-0801-1002 OPR T40 oil pressure regulator (oil restrictor) for turbochargers 40 psi (blue)
ProducerTurbosmart
Product codeTUR TS-0801-1001
148,87 EUR
144,34 EUR
/ PCS
Easy return of products within 14days
Free delivery from113,12 EUR

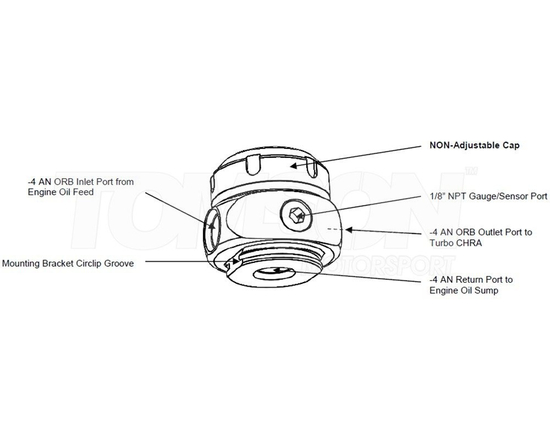

Turbosmart’s Patent Pending OPR T40 is an Oil Pressure Regulator designed for your Turbocharger.

Many turbochargers are built around a bearing and oil pressure profile much lower than is seen by modern & hi-performance, engines and feeding these turbochargers the appropriate amount of oil pressure hase always been a challenge. Traditional methods to limit oil pressure have been with a restrictor, aimed at reducing pressure – However this also reduces flow.

Turbosmart’s OPR T40 is a true regulator in that target oil pressure oil 40psi can be achieved without compromising oil flow. This takes the guess work out of restrictor, or feed and drain hose selection and ensure the oil going to the turbocharger, never exceeds the manufacturers tolerances – This will provide you rock solid oil supply pressure, within the manufactures tolerances.

Patent pending OPR T40 is an oil pressure regulation system for turbochargers. It helps prevent compressor or turbine stage oil leaking/smoking and takes the guesswork out of oil restrictor sizing for more efficient and effective oil delivery. The OPR ensures the oil pressure going to the turbocharger never exceeds 40 psi, regardless of engine oil pressure. A true plug and play setup for oil feed to turbochargers, restrictors not required.

Features:

  • Suitable for all turbochargers
  • AN-4 ORB port fittings
  • 1/8" NPT gauge port for data logging
  • Suitable for all oils
  • Non-directional inlet feed logic
  • Non-adjustable, set and forget

Kit includes:

  • Turbosmart OPRT40 Oil Pressure Regulator
  • Mounting Bracket & Circlip
  • 1/8NPT Gauge Port Blanking Screw
  • Turbosmart Decal
Producer
Product code
TUR TS-0801-1001
Warranty
Producer
Turbosmart

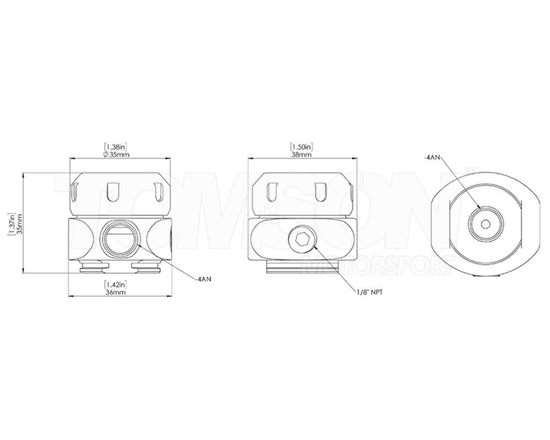

Thread 1
ORB 7/16 x 20 (AN-4 ORB)
Thread 2
ORB 7/16 x 20 (AN-4 ORB)
Thread 3
ORB 7/16 x 20 (AN-4 ORB)
Thread 4
1/8 NPT
Working pressure
2.76 bar (40 psi)
Maximum pressure
11 bar (160 psi)
Temperature range
-30°C to 200°C
Maximum flow
SAE 0W-30 @ 40 psi: 248 L/h (trough return)
,
SAE 10W-60 @ 40 psi: 176 L/h (trough return)
,
SAE 15W-60 @ 40 psi: 106 L/h (trough return)
Material
Aluminium
Colour
Blue
