Turbosmart TS-0801-1002 OPR T40 oil pressure regulator (oil restrictor) for turbochargers 40 psi (black)

  • Turbosmart TS-0801-1002 OPR T40 oil pressure regulator (oil restrictor) for turbochargers 40 psi (black)
  • Turbosmart TS-0801-1002 OPR T40 oil pressure regulator (oil restrictor) for turbochargers 40 psi (black)
  • Turbosmart TS-0801-1002 OPR T40 oil pressure regulator (oil restrictor) for turbochargers 40 psi (black)
Producer: Turbosmart
Product code: TUR TS-0801-1002
Warranty: No warranty
146,36 EUR
141,31 EUR
/ PCS

Easy product returns

Buy a product and check it in your own time, at home.
You can return the product without providing a reason within 14 days.
Show details
14 days for a return
Your satisfaction is very important to us, therefore you can make a return without providing a reason within 14 days.
No stress and worry
Thanks to the integration with cheap returns you can purchase without stress and be sure that the return process will be hassle free.
Easy returns wizard
All returns processed by our shop are managed in a easy-to-use returns wizard which gives you the ability to send a return parcel.

Turbosmart’s Patent Pending OPR T40 is an Oil Pressure Regulator designed for your Turbocharger.

Many turbochargers are built around a bearing and oil pressure profile much lower than is seen by modern & hi-performance, engines and feeding these turbochargers the appropriate amount of oil pressure hase always been a challenge. Traditional methods to limit oil pressure have been with a restrictor, aimed at reducing pressure – However this also reduces flow.

Turbosmart’s OPR T40 is a true regulator in that target oil pressure oil 40psi can be achieved without compromising oil flow. This takes the guess work out of restrictor, or feed and drain hose selection and ensure the oil going to the turbocharger, never exceeds the manufacturers tolerances – This will provide you rock solid oil supply pressure, within the manufactures tolerances.

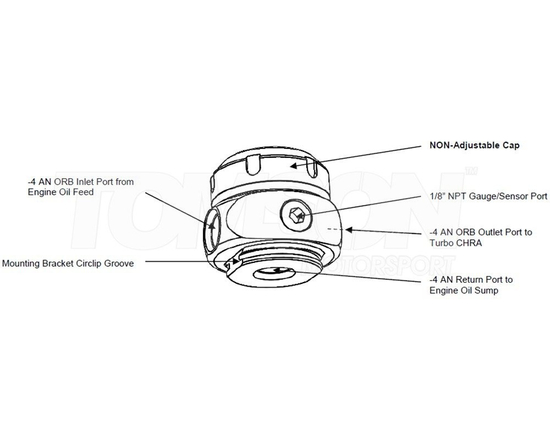

Patent pending OPR T40 is an oil pressure regulation system for turbochargers. It helps prevent compressor or turbine stage oil leaking/smoking and takes the guesswork out of oil restrictor sizing for more efficient and effective oil delivery. The OPR ensures the oil pressure going to the turbocharger never exceeds 40 psi, regardless of engine oil pressure. A true plug and play setup for oil feed to turbochargers, restrictors not required.

Features:

  • Suitable for all turbochargers
  • AN-4 ORB port fittings
  • 1/8" NPT gauge port for data logging
  • Suitable for all oils
  • Non-directional inlet feed logic
  • Non-adjustable, set and forget

Kit includes:

  • Turbosmart OPRT40 Oil Pressure Regulator
  • Mounting Bracket & Circlip
  • 1/8NPT Gauge Port Blanking Screw
  • Turbosmart Decal

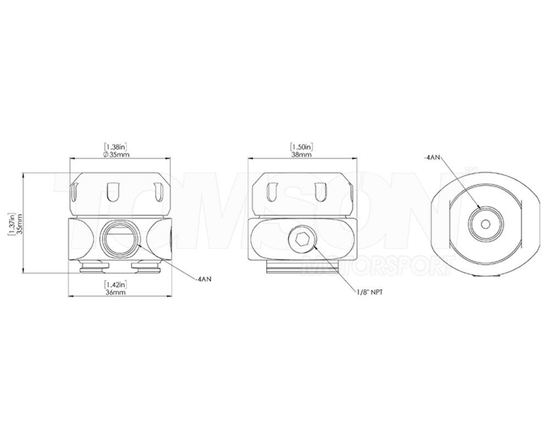

Tech specs:
Producer:
Turbosmart
Thread 1:
ORB 7/16 x 20 (AN-4 ORB)
Thread 2:
ORB 7/16 x 20 (AN-4 ORB)
Thread 3:
ORB 7/16 x 20 (AN-4 ORB)
Thread 4:
1/8 NPT
Working pressure:
2.76 bar (40 psi)
Maximum pressure:
11 bar (160 psi)
Temperature range:
-30°C to 200°C
Maximum flow:
SAE 0W-30 @ 40 psi: 248 L/h (trough return)
,
SAE 10W-60 @ 40 psi: 176 L/h (trough return)
,
SAE 15W-60 @ 40 psi: 106 L/h (trough return)
Material:
Aluminium
Colour:
Black
