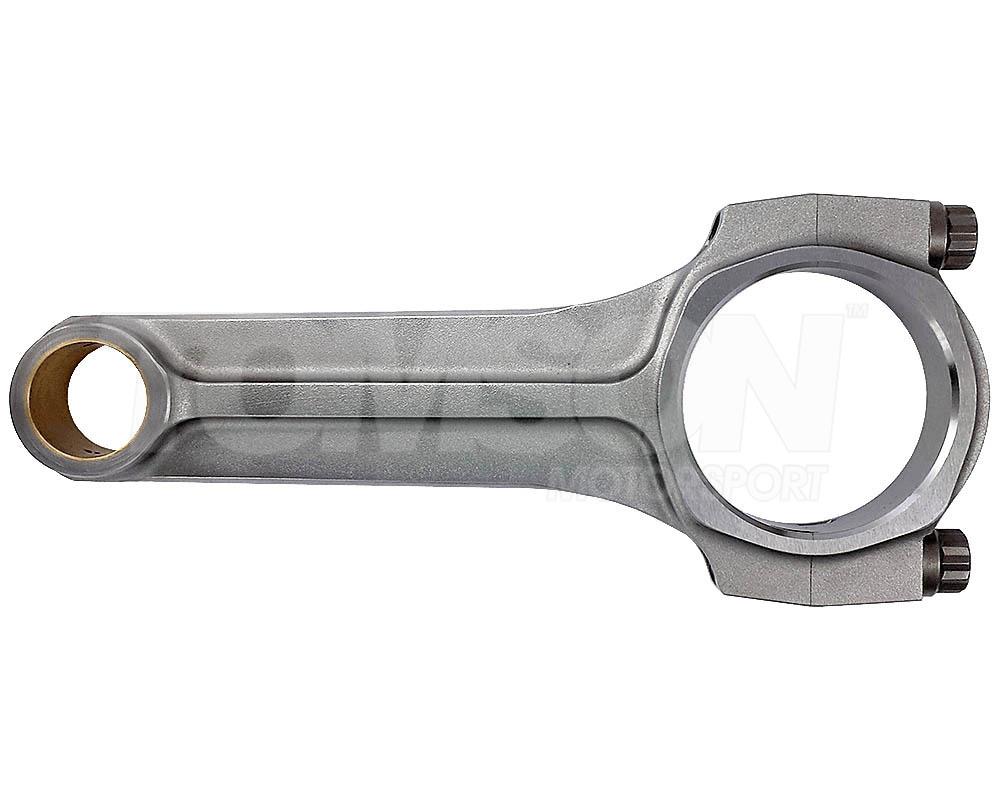

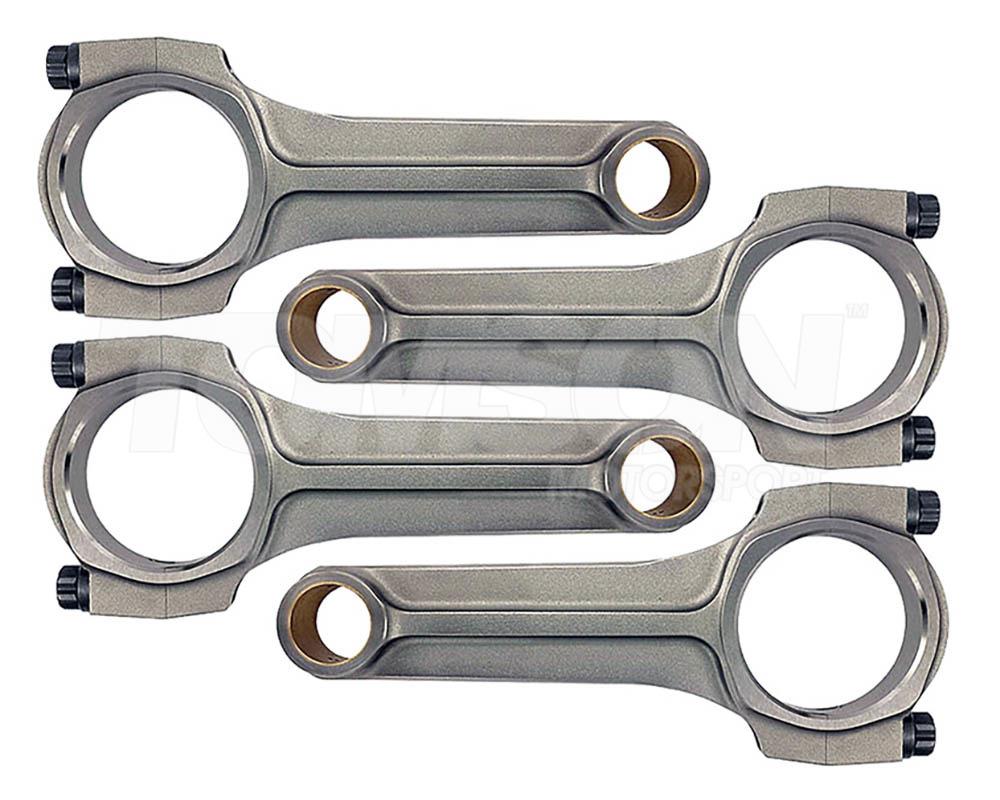

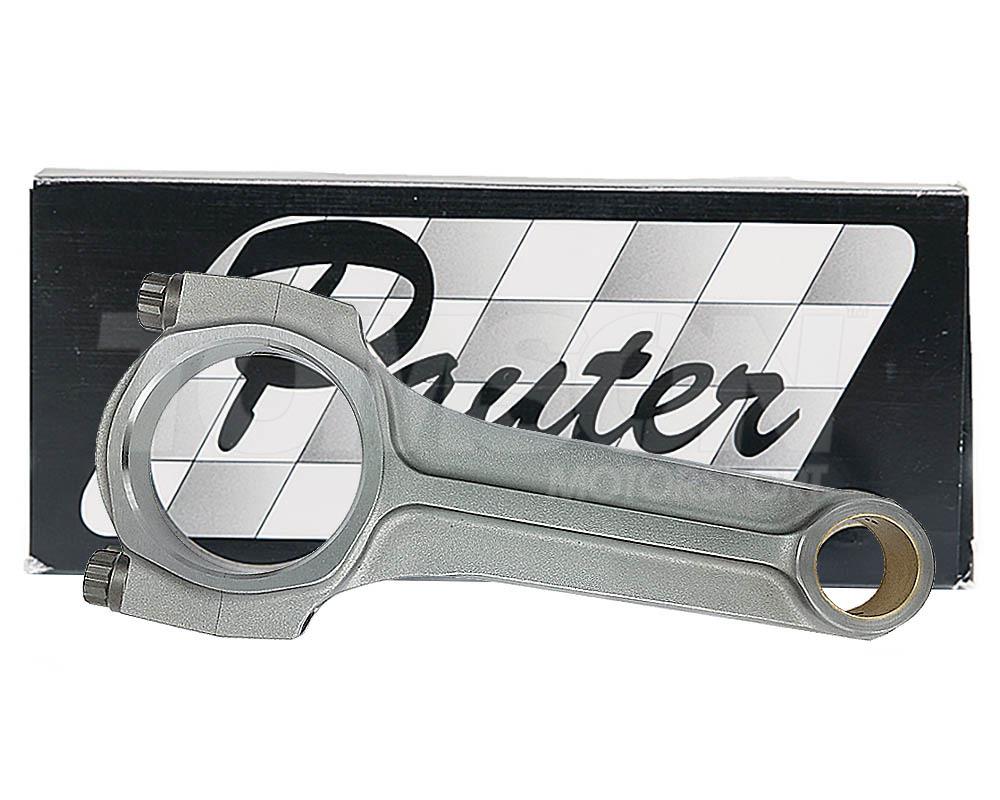

Pauter 993-230-580-1270F X-beam forged rods Porsche 911 (993, 993 Turbo) 3.6

  • Pauter 993-230-580-1270F X-beam forged rods Porsche 911 (993, 993 Turbo) 3.6
  • Pauter 993-230-580-1270F X-beam forged rods Porsche 911 (993, 993 Turbo) 3.6
  • Pauter 993-230-580-1270F X-beam forged rods Porsche 911 (993, 993 Turbo) 3.6
Producer: Pauter
Product code: PAU 993-230-580-1270F
Car make: Porsche
Car model: 911 (993)
2 219,61 EUR
2 152,80 EUR
/ set
Before we process the order with this product, the prepayment in the amount of 2 152,80 EUR may be required. Detailed information will be provided in the order summary, before its placement.

Easy product returns

Buy a product and check it in your own time, at home.
You can return the product without providing a reason within 14 days.
Show details
14 days for a return
Your satisfaction is very important to us, therefore you can make a return without providing a reason within 14 days.
No stress and worry
Thanks to the integration with cheap returns you can purchase without stress and be sure that the return process will be hassle free.
Easy returns wizard
All returns processed by our shop are managed in a easy-to-use returns wizard which gives you the ability to send a return parcel.

For: Porsche 911 (993), 911 Turbo (993) with 3.6 engines

Specifications :
E4340 vacuum melt chrome moly forging – CNC machined.
Heat-treated to Rockwell C36; full coverage shotpeened; end-to-end balanced in sets.
Each rod comes standard with ARP 2000 bolts rated at 220,000 psi tensile strength.
Aluminum-bronze wrist pin bushings (standard.) EDM pressure-fed oiling to pin (available at extra cost.)
Custom pin diameters and center-to-center rod lengths can be ordered.

Pauter Rods Years of hands-on experience, working with rods of all shapes and materials, of all types of racing and racing-related abuse, with design failures (and successes), has resulted in a fairly comprehensive file on just what works - and what doesn't - on the subject of high performance Pauter connecting rods. From this body of knowledge Pauter Rods have selected and incorporated the elements into what it is we think a great rod should be. Right off, Pauter rod looks different, that's obvious, but for some not so obvious and very good reasons.

For starters, the simple Pauter beam design completely eliminates thin and non-uniform cross sections over the total length of the beam. This feature greatly improves resistance to crack-induced metal fatigue. In addition, the non-tapered profile of the Pauter rod beam helps to spread potentially harmful stress over a larger area, dispersing instead of concentrating these destructive loads. The design also efficiently places needed material in critical transitional areas, giving maximum support exactly where it is needed (such as directly under the wrist pin). The streamlined contour also provides subtle benefits in the form of windage reduction. The main beam rib itself continues around the wrist pin boss, perfectly integrating the beam to the pin boss, a small, but important contribution to overall structural unity. Pauter rods are indeed, different by design.

Tech specs:
Producer:
Pauter
Rod type:
X-beam
Rod lenght:
127.00 mm
Big end diameter:
58.01 mm
Pin diameter:
23 mm
Bolts:
ARP2000
Weight:
535 g
