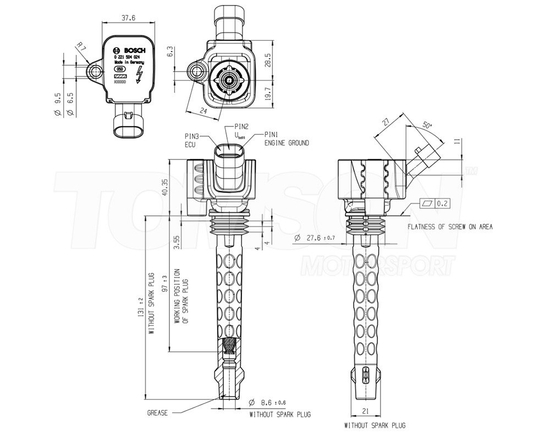

Bosch Motorsport P65 ignition coil

High-quality passive coil Bosch. Willingly and often used the above motorsport by its reliability and technical parameters. Thanks to its small size it can be applied universally to each drive unit. It is compatible with the device ECUMASTER EMU.

• Spark energy: ≤ 65 mJ
• Primary current: ≤ 7.5 A
• Operating temperature range at outer core: -20 to 140°C
• Storage temperature range: -40 to 100°C
• Max. vibration: ≤ 250 m/s2 at 5 to 2,500 Hz
• Length: 180 mm
• Weight w/o wire: 225 g
• Mounting: Screw fastening
• Fits to spark plugs with a ceramic diameter of 10 mm
• Primary resistance: 570 mOhm
• Secondary resistance: Incapable of measurement
• High voltage rise time: ≤ 1.9 kV/µs
• Max. high voltage at 1 MOhm || 10 pF: ≤ 35 kV
• Spark current: ≤ 74 mA
• Spark duration at 1 kV || 1 MOhm: ≤ 2.0 ms
• Noise suppression: Inductive and 1 kOhm resistance
• Suppression diode / EFU: Integrated
• Connector: Tyco AMP
• Pin 1: Engine GND
• Pin 2: Ubatt
• Pin 3: ECU ignition power stage
