Manley 612002C-4 forged pistons Subaru Forester, Legacy, Outback, Impreza WRX, WRX STi 2.5 DOHC (EJ255, EJ257) 99.75 mm CR 8.5:1
Easy return of products within 14days
For: Subaru Forester, Legacy, Outback, Impreza WRX, WRX STi with 2.5 DOHC EJ255, EJ257 engines

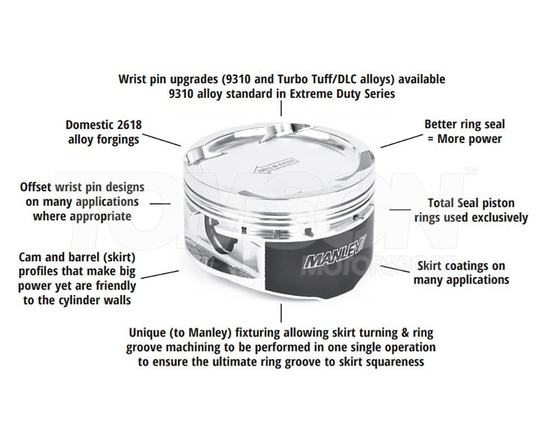

- 2618 high strength material; Lightweight design with offset wrist pin for quiet start-ups
- 2.500” x .180” wall Premium Chrome Moly pin (Standard Series) included P/N 42346
- 9310 alloy .210” wall pin (Extreme Duty Series) included P/N 42546
- Pressure balance groove
- Will accommodate +1mm valve sizes
- Premium Steel top rings with Napier seconds and round wire locks included
- Recommended piston clearance: .003” for mildly boosted and .0035” for highly boosted measured .850” (79/83mm stroke) and 1.100” (75mm stroke) from the bottom of the oil ring
Producer
Product code
MAN 612002C-4
Warranty
Producer
Manley
Bore
99.75 mm
Comression ratio
8.5:1
Rod lenght
130.48 mm (5.137")
Skirt
Full round
Pin diameter
23 mm
Weight
398 g
Car make
Subaru
Car model
Impreza WRX 2001-2007
, Impreza STi 2012-2014
, Impreza STi 2008-2012 (GR)
, Impreza WRX 2008-2014
, Impreza STi 2001-2007
, Forester II 2000-2008
, Forester III 2009-2013
, Forester IV 2012-
, Legacy IV 2003-2009
, WRX 2015-
, Impreza WRX 2007-2011
Engine code
EJ25
