Variohm XPD 32 mm DBW (Drive By Wire) 180° throttle position sensor for Tilton 72-603, 72-615, 72-616, 72-618, 72-803, 72-903 pedalboxes
For: Tilton 72-603, 72-615, 72-616, 72-618, 72-803, 72-903 pedalboxes with DBW throttle system

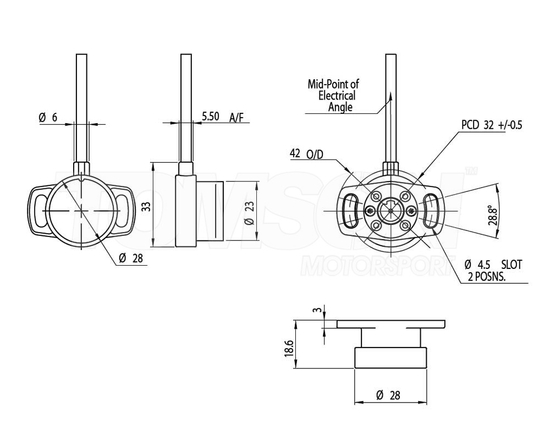

The Euro XPD D-Shaft Non Contacting Rotary Position Sensor is extremely robust and offers long life. It is based on our well proven Euro-XP angle sensor. It offer IP68 protection and has selectable mounting options.
Download the data sheet for the Euro XPD D-Shaft Non Contacting Rotary Position Sensor for full details.
Producer
Product code
VAR EURO-XPD-2832-818-214-911-00
Warranty
Producer
Variohm
Mechanical
Typical Life Cycle
>50 million movements (restriction by mechanics)
Torque [eng]
< 0.1 Ncm
Measuring range

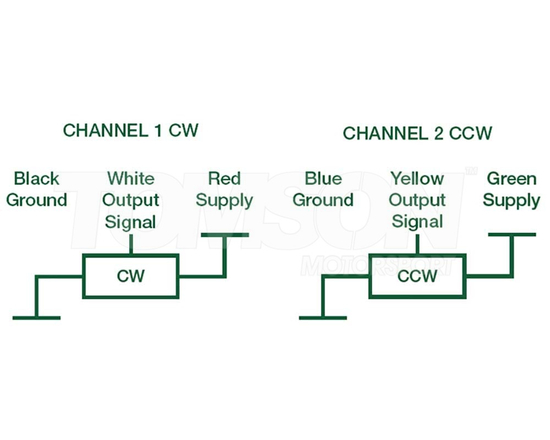

180º redundant, signal 1 cw, signal 2 ccw
Housing
High grade temperature resistant plastic

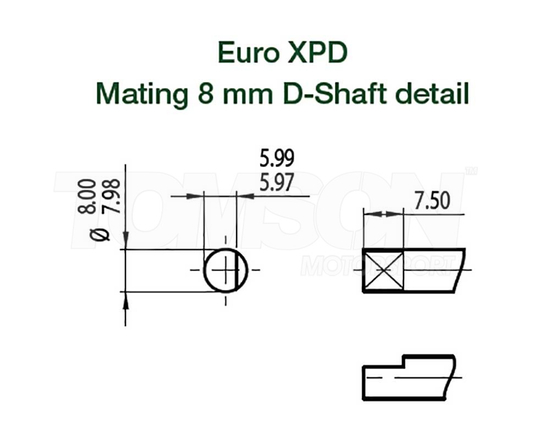

D-Shaft
Nylon 66
Environmental
IP rating
IP68 (minimum)
Vibration
5...2000 Hz; Amax = 0.75 mm; amax = 20g to IEC 60068-2-6
Temperature range
-40° C to +125° C (Short term 150º C)
Electrical
Supply Voltage
5V +/- 0.5V
Output signal
Ratiometric 5%...95% of supply (+/-25mv of specified electrical output range for both start & end voltage)
Independant linearity
+/- 0.5% of each signal range
Isolation resistance
200 MΩ (500 VDC, 1 bar, 2s)
Electrical connection
XL ETFE: Ø = 0.94mm; 0.24 mm2; L = 500 mm
Cable type
Raychem Spec 55, 24 AWG; Sleeving - Raychem DR25
