Cartek CK-BR-08-B XR electronic battery isolator (cut off switch) with FIA approved
The XR Battery Isolator is the latest generation of motorsport master-switch devices from CARTEK. At 30% smaller size and 40% lighter weight than the GT isolators, the XR version offers even more benefits and performance when compared with traditional mechanical master-switches and electro/mechanical safety cut-outs.

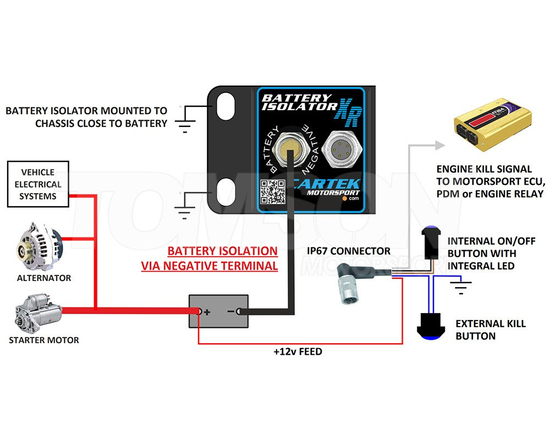

When fitted to a race car our Solid State Battery Isolator simultaneously isolates the battery and kills the engine immediately when triggered in accordance with FiA safety regulations. Cartek Battery Isolators can be supplied unit only for connection to customers own switches/buttons or as full kits with high quality, fully waterproof, internal and external buttons and safety stickers. This system has been designed to simplify installation thereby saving time and reducing build costs.
Features:
- Fully electronic with no moving parts
- Compatible with most motorsport ECUs
- 0.5 second delay between engine kill signal and battery disconnection allowing time for ECU shutdown procedures
- Totally sealed against water and dirt
- Completely resistant to shock and vibration
- Fully integrated with built in alternator run-down circuitry - No extra components required
- Driver operation by a single internal ON-OFF button/switch
- External operation by single or multiple switches
- Buttons / switches connected to Isolator using lightweight wiring and IP67 sealed connector

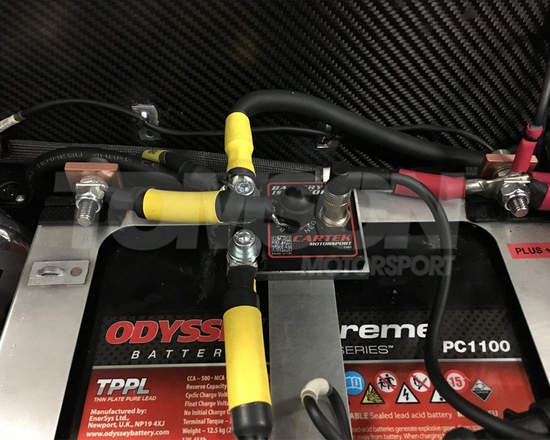

- Mounts close to battery for reduced cabling

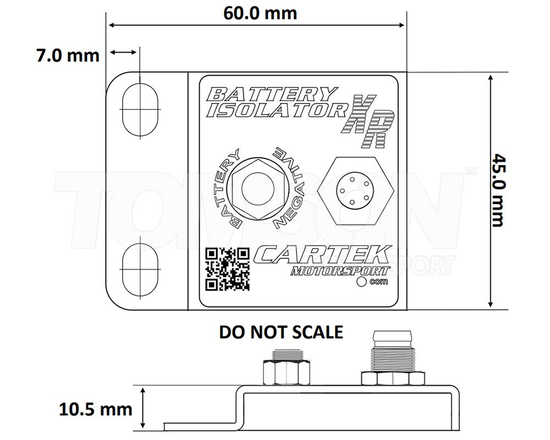

- Very small and weighs just 70g
- Designed and manufactured in UK using high quality components.
