Garrett 856801-5006S GTX3071R GEN 2 T3 Single Scroll A/R 0.63 turbocharger

  • Garrett 856801-5006S GTX3071R GEN 2 T3 Single Scroll A/R 0.63 turbocharger
  • Garrett 856801-5006S GTX3071R GEN 2 T3 Single Scroll A/R 0.63 turbocharger
  • Garrett 856801-5006S GTX3071R GEN 2 T3 Single Scroll A/R 0.63 turbocharger
  • Garrett 856801-5006S GTX3071R GEN 2 T3 Single Scroll A/R 0.63 turbocharger
  • Garrett 856801-5006S GTX3071R GEN 2 T3 Single Scroll A/R 0.63 turbocharger
Producer: Garrett
Product code: GAR 856801-5006S
Warranty: No warranty
1 721,90 EUR
1 669,75 EUR
/ PCS
Before we process the order with this product, the prepayment in the amount of 834,88 EUR may be required. Detailed information will be provided in the order summary, before its placement.

Easy product returns

Buy a product and check it in your own time, at home.
You can return the product without providing a reason within 14 days.
Show details
14 days for a return
Your satisfaction is very important to us, therefore you can make a return without providing a reason within 14 days.
No stress and worry
Thanks to the integration with cheap returns you can purchase without stress and be sure that the return process will be hassle free.
Easy returns wizard
All returns processed by our shop are managed in a easy-to-use returns wizard which gives you the ability to send a return parcel.

Garrett® GTX Series turbochargers are designed specifically for the hard-core enthusiast who wants optimal performance. The forged fully-machined billet aluminum compressor wheels feature next generation aerodynamics that provide a larger horsepower range and maximize boost response.

Ported shroud compressor housings increase surge resistance and provide reliable, continuous power throughout the power band. A dual ceramic ball bearing cartridge prolongs the lifespan and improves shaft balance. The water cooled CHRA keeps housing temperatures to a minimum. The turbine wheel is constructed from Inconel, a Super Alloy that maintains strength during prolonged exposure to high exhaust gas temperatures.

Turbine kits are offered in open volute and twin scroll, and a variety of A/R and flange configurations. GTX Series turbochargers are used by today’s top motorsports teams and are ready to boost you to the podium or wherever your destination may be.

Features:

  • GEN 2 aerodynamics feature increased horspower range
  • New fully machined speed sensor port
  • Sold as assembly kits (super core + turbine housing)
  • New reverse rotation configurations available

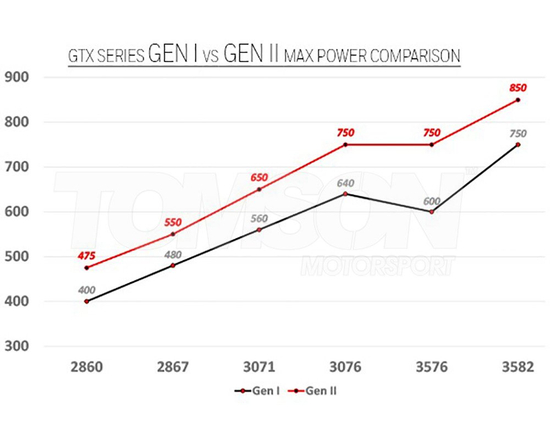

Honeywell Garrett, is excited to announce the release of our Gen II GTX Series turbochargers. The GTX3071R, GTX3076R, GTX3576R, as well as the GTX3582R are included in the release. The GTX Gen II line received a major compressor wheel aero update that gives it the ability to produce up to 20% more horsepower than the previous version. You can also get these turbochargers in a Reverse Rotation configuration!

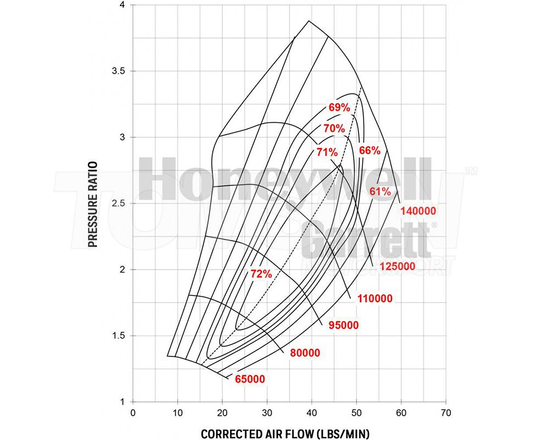

GTX Gen II compressor wheels were designed using proprietary Honeywell computer simulation technology focusing on CFD analysis to optimize the wheel design to reach maximum efficiency and mass flow for each turbocharger. Each GTX Gen II turbocharger has the ability to create more air mass flow, offering enthusiasts a wider range of power output when tuning the vehicle. The 8mm dual ceramic ball bearing cartridge provides optimal turbo response and reliability through its reduction in shaft motion.

The Gen II GTX Series Turbochargers feature a fully-machined compressor inlet, fully-machined compressor outlet, and fully-machined ported shroud.

We also added a brand new compressor housing featuring a high-flowing design matched perfectly for the new compressor wheel upgrade. Gen II compressor housings are not interchangeable with Gen I compressor wheels; however, all Gen II turbochargers are outline interchangeable with the equivalent GT and GTX Gen I products making a turbo swap easy to perform using all existing piping.

The new compressor housings are equipped with a fully machined speed sensor port that accepts the Honeywell Garrett speed sensor (Sold separately). This feature allows tuners to understand existing operating conditions, which is important when fine tuning a turbocharger to its most efficient operating conditions. The speed sensor port comes plugged from the factory and can be removed using a 5mm allen key when ready to install a speed sensor kit.

All Gen II GTX series turbochargers are compatible with existing GT and GTX turbine housings kits. Gen II turbochargers are only offered through Honeywell Garrett authorized distribution centers.

Available in four sizes: the GTX3071R, GTX3076R, GTX3576R, and GTX3582R Reverse Rotation turbochargers are ideal for twin turbo, V engine applications and for fabricators that want perfect symmetry to be displayed in the engine compartment. The Reverse Rotation turbos can also be used in single turbo applications where packaging is an issue. The compressor wheel spins in a counter-clockwise rotation while the compressor outlet exits air to the left, making its components non-interchangeable with Gen 1 or Gen II standard rotation products.

Featuring the new GTX Series Gen II compressor wheel designed using proprietary Honeywell computer simulation technology. Reverse Rotation turbochargers should be paired with a Gen II Standard Rotation counterpart and are not recommended to be matched with a Gen I turbocharger because the higher horsepower rating could lead to engine or other mechanical failure.

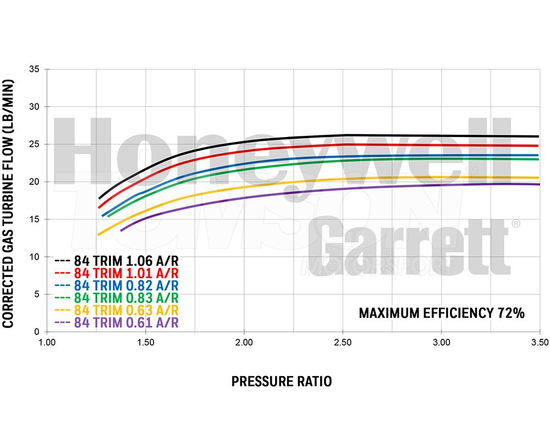

Reverse Rotation turbochargers have specifically designed turbine housings ranging from 0.61, 0.83, and 1.01 A/R and are not compatible with standard rotation housings.

Tech specs:
General
Producer:
Garrett
Series:
GTX
Power range:
340-650 KM
Engine capacity:
1.8-3.0 l
Bearings:
Dual row ceramic with water cooling
Warranty:
12 months
Compressor side
Compressor wheel:
Steel
Compressor wheel outer diameter:
71 mm
Compressor wheel inducer diameter:
54 mm
BOV:
No
Turbine side
Turbine wheel:
Steel
Exhaust inlet:
T3 Single Scroll
A/R:
0.63
Turbine wheel outer diameter:
60 mm
Turbine outlet:
92 mm (3" v-band)
Wastegate:
No
Boost control solenoid:
No
