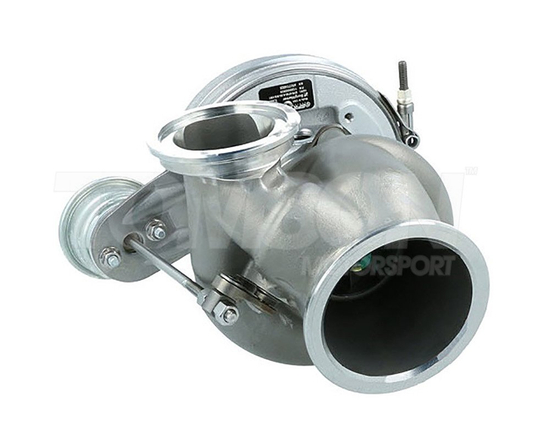

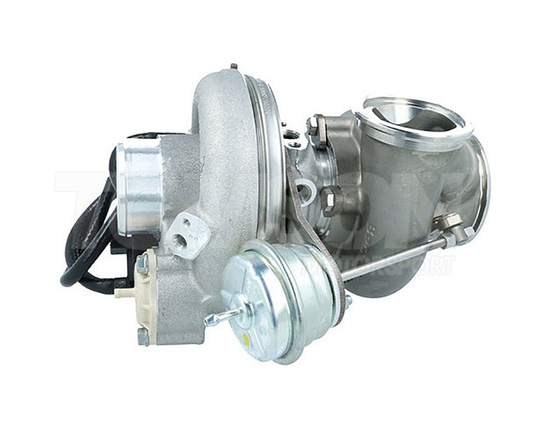

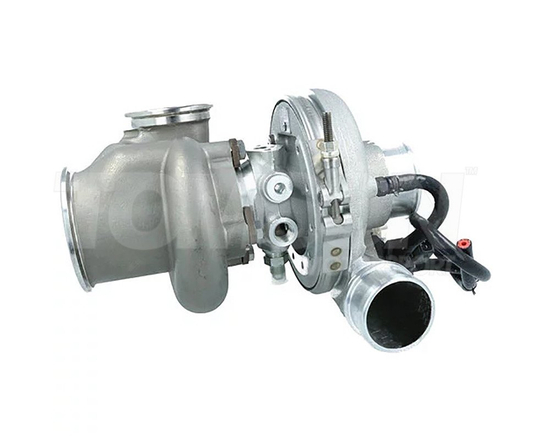

Borg Warner 11589880035 EFR 6758 V-Band A/R 0.85 WG turbocharger

For: universal

Clean-sheet concepts. Loaded with innovations. Engineered For Racing.

What kind of turbocharger would you build for your high-performance car? The engineers in BorgWarner’s Advanced Aftermarket Product group created a wish list of every notable design characteristic. They used materials that had never been combined into an aftermarket turbocharger. They delivered quick boost response, powerful performance and reliable durability.

The EFR (Engineered For Racing) turbochargers from BorgWarner offer an unprecedented combination of advanced technologies:

• Low-weight Gamma-Ti turbine wheels and shaft assemblies for quick boost response
• Patent-pending dual ceramic ball bearing cartridges for more thrust capacity, durability and turbine efficiency at low expansion ratios
• Stainless steel turbine housing for increased efficiency, improved durability and corrosion resistance

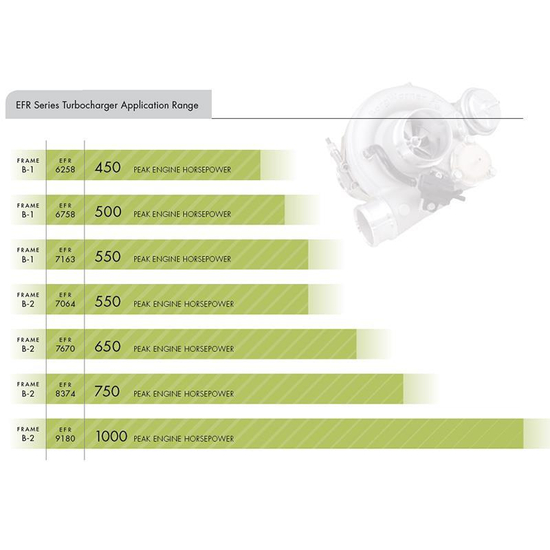

• Range of units supporting 225 to 1,000 horsepower per turbocharger

The EFR 6758 is available in four different turbine housing configurations:

• 0.64 A/R T25 undivided (internal WG)
• 0.85 A/R T25 undivided (internal WG)
• 0.85 A/R V-Band (internal WG)
• 0.80 A/R T4 twinscroll (internal WG)
• 0.85 A/R V-Band undivided (external WG) - optional turbine housing (P/N 11581008003)

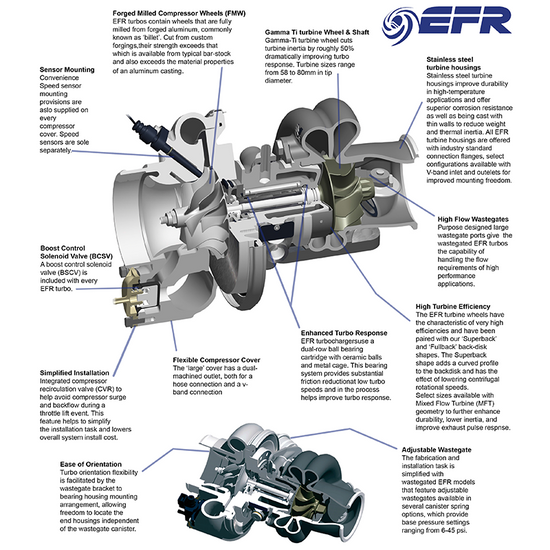

Features:

• Gamma-Ti turbine wheel
• Integrated Compressor Recirculation Valve (CRV)
• Dual ceramic ball bearing assembly with metal cage
• Boost Control Solenoid Valve (BCSV)
• Forged Milled Compressor Wheel (FMW)
• Extended tip technology
• Compressor cover with speed sensor mounting provisions
• 3" v-band turbine outlet (92 mm output diameter) for all EFR turbos
• Watercooled Center Section - watercooling is recommended (14mm banjo bolts)
• Double seals on both turbine and compressor end for extreme durability and resistance to any oil seepage
