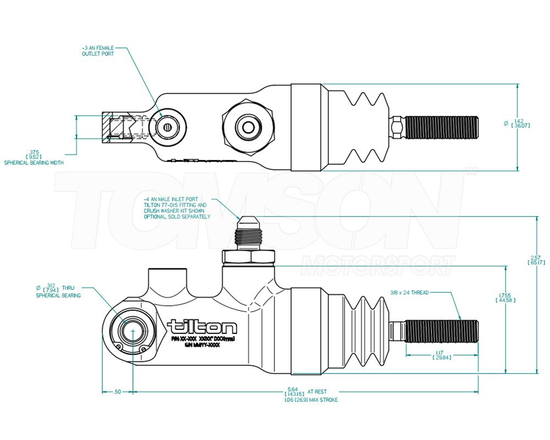

Tilton 78-937 78-Series Master Cylinders 15/16"

For: Tilton 900-Series pedal assemblies and balance bars

Tilton 78-Series master cylinders offer the latest in racing master cylinder technology in a very lightweight and compact design. The rear spherical bearing mount and one-piece piston/pushrod eliminate side thrust into the master cylinder bore, providing consistent and repeatable braking.

78-Series master cylinders features:

• 40% lower price than 77‐Series master cylinders they replace ($235 vs $395 Retail)
• Directly interchangeable with 77‐Series master cylinders
• Billet aluminum body with proprietary low‐friction coatings minimize wear and provides smooth operation
• Rear spherical bearing mount and one‐piece piston/pushrod eliminates side thrust into the master cylinder bore, providing consistent and repeatable braking
• Hand‐built and blueprinted for cut‐off port travel
• External dust boot included
• O‐ring seal at the main rod guide and body interface
• 1.1” of stroke
• AN3 outlet port and AN6 inlet port
• 7 bore sizes available

78-Series master cylinders are designed specifically for use with Tilton 900-Series pedal assemblies and balance bars.
