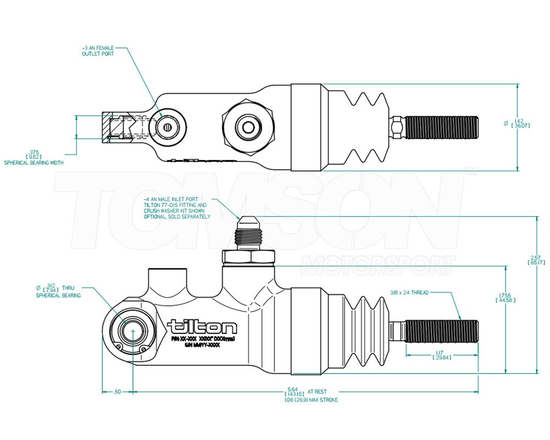

Tilton 78-750 78-Series Master Cylinders 0.750"
Easy return of products within 14days
Free delivery from236,41 EUR
For: Tilton 900-Series pedal assemblies and balance bars
Tilton 78-Series master cylinders offer the latest in racing master cylinder technology in a very lightweight and compact design. The rear spherical bearing mount and one-piece piston/pushrod eliminate side thrust into the master cylinder bore, providing consistent and repeatable braking.
78-Series master cylinders features:
- 40% lower price than 77‐Series master cylinders they replace ($235 vs $395 Retail)
- Directly interchangeable with 77‐Series master cylinders
- Billet aluminum body with proprietary low‐friction coatings minimize wear and provides smooth operation
- Rear spherical bearing mount and one‐piece piston/pushrod eliminates side thrust into the master cylinder bore, providing consistent and repeatable braking
- Hand‐built and blueprinted for cut‐off port travel
- External dust boot included
- O‐ring seal at the main rod guide and body interface
- 1.1” of stroke
- AN3 outlet port and AN6 inlet port
- 7 bore sizes available
78-Series master cylinders are designed specifically for use with Tilton 900-Series pedal assemblies and balance bars.
Producer
Product code
TIL 78-750
Warranty
Producer
Tilton
Piston bore
19.05 mm (3/4")
Stroke
26.90 mm
Type
Push type
Inlet
AN6 ORB
Outlet
AN3 ORB
Warranty
12 months
12 months guarantee
12 months guarantee
