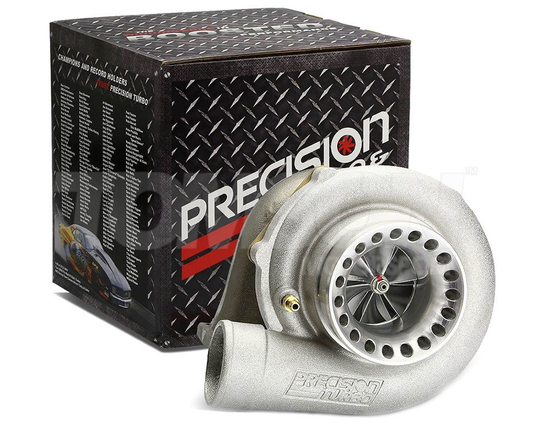

Precision Turbo turbocharger PT6266 CEA T3/V-band 0.63 A/R
Hp Rating: 735
Featuring the latest and greatest in compressor and turbine wheel technology from Precision, the PT6266 CEA® offers a unique combination of Competition Engineered Aerodynamics (CEA®) with both hot and cold sides! Offering a 30-45 horsepower increase over similarly sized turbine wheel equipped turbos, the PT6266 CEA® is the perfect choice for those wanting to make more power without changing their current system.
PTE's PT6266 Turbocharger features the following:
• Exclusive CEA® (Competition Engineered Aerodynamics) compressor wheel machined from a 2618-aluminum forging
• Higher efficiency and faster transient response for maximum power and performance
• 62mm inducer compressor wheel
• Compressor cover options:
- "E" compressor cover 3.0" inlet/2.0" outlet
- "Ported S" compressor cover 4.0" inlet/2.5" outlet
• Exclusive CEA® (Competition Engineered Aerodynamics) 66mm, 76 trim turbine wheel
• Turbine housing options:
- T3 .63 or .82 A/R with 4 bolt (2.5") discharge
- T3 .63 A/R with 5 bolt discharge (with or without wastegate hole)
- T3 .63 or .82 A/R with 3" V-Band discharge
- V-Band inlet .82 A/R with V-Band discharge
- T4 Tangential .58, .68, .81, or .96 A/R with 3 5/8" V-Band discharge
- T4 Divided .84, 1.0, 1.15, or 1.32 A/R with 3 5/8" V-Band discharge
- Buick .63 or .85 A/R
- GMC Syclone/Typhoon .85 A/R
• Available with either a Hydrodynamic 360° thrust bearing system, or an Air-cooled, dual ceramic ball-bearing center housing rotating assembly (CHRA)
Precision customers have a history of setting records and getting noticed. They don't sit in the stands watching the action – they're the ones making it happen. Innovation is a collaborative process and we focus our efforts on you. Get involved and be a part of the action today with PTE.
