Motec 18069 (18048) C127 7" colour display (non-logging)

Motec 18069 (18048) C127 7" colour display (non-logging)
Motec 18069 (18048) C127 7" colour display (non-logging)
Motec 18069 (18048) C127 7" colour display (non-logging)
Motec 18069 (18048) C127 7" colour display (non-logging)
Motec 18069 (18048) C127 7" colour display (non-logging)
Motec 18069 (18048) C127 7" colour display (non-logging)
ProducerMotec
Product codeMOT 18069
3 440,66 EUR
3 337,59 EUR
/ pcs / incl. 23% VAT
Before we process the order with this product, the prepayment in the amount of 3 337,59 EUR may be required. Detailed information will be provided in the order summary, before its placement.
Easy return of products within 14days
Free delivery from236,41 EUR

The C127 comes standard as a combined 7" full colour display and powerful control device with outstanding readability in direct sunlight. With the addition of the Data Logging upgrade it becomes a fully programmable data logger with 120 MB memory. Optional USB Logging provides additional data capacity and flexibility.

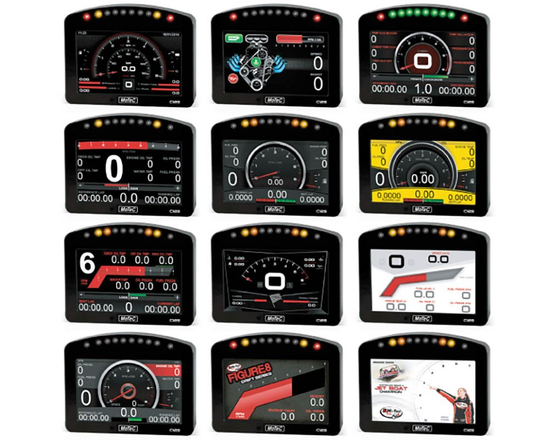

Numerous supplied display layouts offer fixed graphics with configurable channels and labels, while the optional Display Creator software provides the tools for full screen customisation.

The C127 acquires data from other devices, such as an ECU, and can display data channels, warning alarms, lap times, fuel calculations, minimum corner speeds, maximum straight speeds and more.

Features:

  • Impressive High Resolution 178 mm (approx. 7") colour LCD display
  • High brightness for sunlight readability
  • Optional internal logging and USB logging
  • 16 full colour (RGB) LEDs; colour, function and intensity are fully programmable
  • Suitable for cars, marine and industrial applications
  • Supports Wideband Lambda from MoTeC PLMs or LTCs
  • Easily integrates with MoTeC CAN based devices such as ECUs and expanders. Full I/O expansion with E888 and E816
  • GPS Lap Timing
  • Supports T2 Telemetry (with upgrade)
  • IP67 rated housing
  • A composite video input allows for a live on-screen footage, for example from a rear view camera (requires Display Creator)

Optional accesories:

  • 62204 – C127 RACE TERMINATED LOOM
  • 61259 – C127 INPUT LOOM
  • 61279 – CABLE USB LOGGING 1.5M (PANEL MOUNT)
  • 61403 – CABLE, AUTOSPORT USB LOGGING 1.5M (PANEL MOUNT)
  • 61280 – 32 GB USB DATA PLUG
  • 61292 – 32 GB USB3 FLASH DRIVE

Optional upgrades:

  • 29800 – C127 I/O
  • 29818 – C127 120MB LOGGING
  • 29814 – C127 USB LOGGING
  • 29816 – C127 DISPLAY CREATOR
  • 29820 – C127 PRO ANALYSIS
  • 29823 – C127 T2 TELEMETRY

Specifications:

  • Display
  • Screen: Colour TFT LCD, anti-reflective
  • Resolution: 800 x 480 resolution, anti-aliased graphics
  • Layouts: selectable fixed layouts (user programmable layouts via optional Display Creator software)
  • 48 user-defined, scrollable message lines with programmable overrides
  • 3 programmable modes with customisable labels
  • Logging - optional (requires upgrades)
  • 120 MB internal logging memory
  • USB logging to a removable storage device
  • Logging rates up to 500 samples per second
  • Fast Ethernet download
  • i2 Standard data analysis software included (Pro Analysis upgrade available)
  • Removable USB Storage Device Options
  • Kingston 32 GB USB3 Flash Drive - fast, low weight and low cost, not mechanically latched or waterproof.
  • MoTeC 32 GB USB3 Data Plug - mechanically latched, waterproof with anodised housing, ideal for exposure to the elements and vibration.

Alternative USB storage devices may be used but are not recommended.


Inputs

  • 2 x Digital inputs
  • 3 x Speed inputs
  • 1 x Composite video input

Inputs - optional (requires I/O upgrade)

  • 6 x Analogue voltage inputs
  • 4 x 0 to 5.46 V, 1.33 mV resolution
  • 2 x 0 to 15.0 V, 3.66 mV resolution
  • 2 Analogue temperature inputs
  • 2 x 0 to 15.0 V, 3.66 mV resolution

Outputs - optional (requires I/O upgrade)

  • 4 x low side outputs PWM or switched operation
  • 0.5 Amp max, current limited and thermal overload protected

Expanders

  • Compatible with E816 and E888 expanders (providing full functional use)

Internal Sensors

  • 3-axis accelerometer, detection range: +/- 5G
  • Dash temperature sensor
  • Sensor supply voltage
  • Battery voltage

Communications

  • 2 x configurable CAN buses, with individually programmable CAN bus speeds.
  • 2 x RS232 ports, one with transmit and receive, one with receive only.

Power supply

  • Operating voltage: 6 to 32 V DC
  • Operating current: 0.5 A typical at 14 V (excl. sensor currents)
  • Reverse battery protection
  • Battery transient protection

Sensor supply currents

  • 5 V sensor supply: 0.25 A maximum
  • 8 V sensor supply: 0.25 A maximum

Operating temperature

  • Internal: -20 °C to 70 °C (above 60 °C maximum backlight brightness progressively reduced)
  • Typical ambient temperature range in free air: -20 °C to 55 °C

Ingress Protection (IP) Rating

  • The device is rated to IP67

Physical:

  • Size: 196.2 x 122.5 x 26.3 mm excluding connector
  • Weight 715 g
  • 1 x 34 pin waterproof connector
  • 1 x mini USB port (located on the back of the device)
Producer
Product code
MOT 18069
Features
Lap timer
Lap timer z pamięcią
,
przewidywanie czasów
,
uruchamiany przez sygnał nawigacyjny lub GPS
Customization
3 strony
,
gotowe szablony do wgrania lub możliwość tworzenia własnych
Functions
Matematyczne + logiczne
Overlays
Tak
,
definiowane przez użytkownika
CAN stream
User defined
,
up to 48 input messages
,
predefined streams for popular ECUs
General specification
Operating voltage
6-22 V
,
odporność zgodna z ISO 7637
,
z ochroną przed odwrotną polaryzacją
CPU
32 bits
,
automotive
,
90MIPS
Temperature range
-30°C do 80°C
Enclosure
Anodowane aluminium
,
obrabiana CNC
,
norma IP65
Connection
Tyco 34 pin
,
wodoszczelne
Display
Matowy wyświetlacz TFT 7"
,
800x480
,
aktywne pole 154.08x85.92 mm
,
jasność 500cd/m2
Alarms
16 x ultra bright RGB LEDs
Communication
CAN
4 x CAN 2.0B (250
,
500
,
1000 kbps) niezależne
Serial
RS232 (Rx
,
Tx)
USB
Yes
Inputs
Analog
8 analogowych wyjść
,
10 bits
,
1000Hz
,
napięciowe i temperaturowe
Cyfrowe
5 inputs user defined
Outputs
Wyjścia ogólne
6 x protected 1A low side outputs
Logging
Memory
120Mb or USB Flash Memory
Rate
up to 1000Hz
Zegar
Yes
Others
Accelerometer
3 axis gyro and 3 axis acceleration
Light sensor
brak
Temperature sensor
Wbudowany
,
do monitorowania temperatury wyświetlacza
Real time clock
Wbudowany
,
z zasilaniem bateryjnym
