Motec 41401 CAN keyboard 8-buttons

For the ultimate in power management, combine the reliability of a PDM with the simplicity and flexibility that a keypad delivers. MoTeC Keypads work specifically with the current range of MoTeC Dashes and PDMs. Keypads are easy to program and feature CAN bus capabilities.

Each switch and its 3 LEDs can be independently programmed. One option is to use the LED illumination to clarify the status of the PDM-assigned device.

Example:
LED 1: Power status LED 2: Re-try power-up LED 3: Failed power-up attempts

Complete the keypad customisation by applying the desired semi-transparent label to each backlit button.

FEATURES
A MoTeC Keypad will enhance the application and integration of a MoTeC PDM into any vehicle. Specific features include:
Compact and lightweight
Rugged design for use in extreme environments, sealed to IP67
Backlit customised graphical symbols available
Real time feedback via LED indicators above each button
Simplified wiring, only 4 wires required for multiple buttons
Short circuit, reverse polarity protection
There are two sizes available:

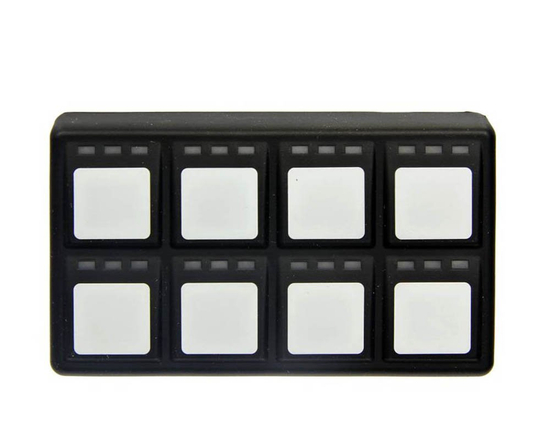

8 button, 2 rows of 4 buttons (Part Number: 41401)
15 button, 3 rows of 5 buttons (Part Number: 41400)
