Turbocharger (super core) Borg Warner AirWerks S300SX-E 13009097053 (80 mm)

Turbocharger (super core) Borg Warner AirWerks S300SX-E 13009097053 (80 mm)
Turbocharger (super core) Borg Warner AirWerks S300SX-E 13009097053 (80 mm)
Turbocharger (super core) Borg Warner AirWerks S300SX-E 13009097053 (80 mm)
Turbocharger (super core) Borg Warner AirWerks S300SX-E 13009097053 (80 mm)
Turbocharger (super core) Borg Warner AirWerks S300SX-E 13009097053 (80 mm)
Turbocharger (super core) Borg Warner AirWerks S300SX-E 13009097053 (80 mm)
Turbocharger (super core) Borg Warner AirWerks S300SX-E 13009097053 (80 mm)
Turbocharger (super core) Borg Warner AirWerks S300SX-E 13009097053 (80 mm)
Turbocharger (super core) Borg Warner AirWerks S300SX-E 13009097053 (80 mm)
Product codeARW 13009097053
744,57 EUR
721,27 EUR
/ PCS
Before we process the order with this product, the prepayment in the amount of 360,63 EUR may be required. Detailed information will be provided in the order summary, before its placement.
Easy return of products within 14days
Free delivery from113,12 EUR

For: universal

Borg Warner Airwerks turbochargers are designed for the competitive motorsports market as well as drivers retrofitting a naturally aspirated engine or looking for a little more performance from a factory turbocharged car.

Engineered specifically for drag racing, pulling and road racing, AirWerks turbochargers have earned a reputation as robust, brute-force induction systems. Looking for a no-frills replacement? Want to upgrade your turbocharger? Working with limited space? BorgWarner’s AirWerks turbochargers are the perfect go-to product for many applications.

With a twin hydrodynamic journal bearing design, AirWerks turbochargers feature an effective high-pressure ratio compressor stage, extended-tip technology and a high-efficiency turbine stage. The configuration provides ultra-fast response and more than 70 PSI of boost.

The AirWerks S300SX-E is available with few different turbine housing configurations (sold separately):

  • For 80 mm Turbine Wheel:
    • 0.88 A/R T4 undivided - P/N: 177211
    • 0.91 A/R T4 twinscroll - P/N: 177208
    • 1.00 A/R T4 twinscroll - P/N: 179905
  • For 76 mm Turbine Wheel:
    • 0.88 A/R T4 undivided - P/N: 177210
    • 0.91 A/R T4 twinscroll - P/N: 177207
    • 1.00 A/R T4 twinscroll - P/N: 177209

Features:

  • 360 degree thrust bearing
  • Integrated speed sensor port

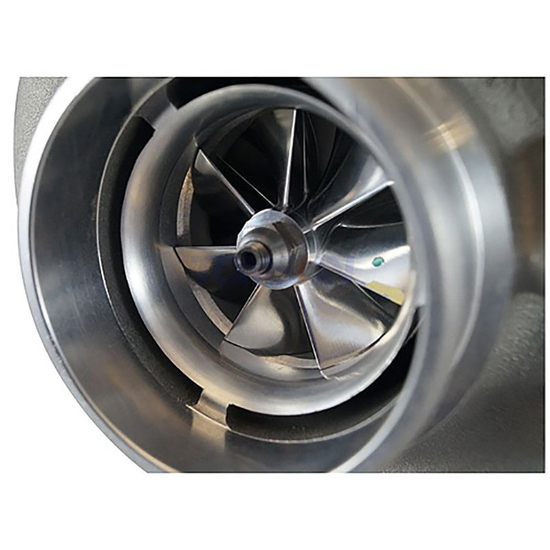

  • Forged milled compressor wheel
  • Flexible compressor cover outlet options
  • Pre-machined boost port
  • Optimized compressor stage aerodynamics
Product code
ARW 13009097053
General
Producer
Borg Warner
Series
Airwerks
Power range
400-775 KM
Engine capacity
1.8-3.0 l
Bearings
Twin hydrodynamic journal bearings
Warranty
12 months
Compressor side
Compressor wheel
Forged Milled Compressor Wheel (FMW)

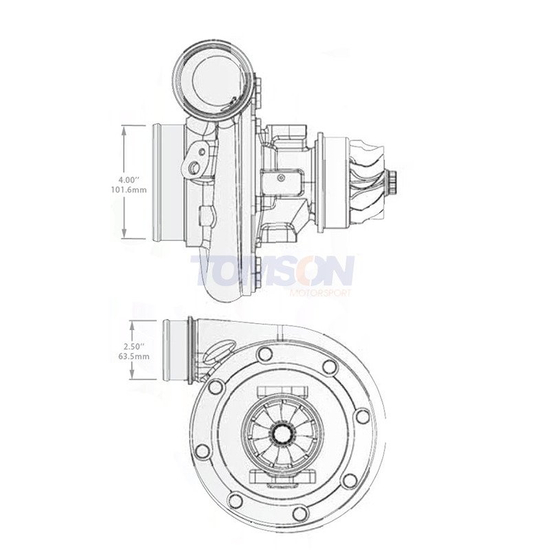

Compressor inlet
101.6 mm (4")
Compressor wheel outer diameter
83.47 mm
Compressor wheel inducer diameter
61.44 mm
Compressor outlet
63.5 mm (2.5")
BOV
No
Turbine side
Turbine wheel
Gamma-Ti (Gamma Titanium)
Exhaust inlet
-
A/R
-
Turbine wheel outer diameter
79.76 mm
Turbine outlet
-
Wastegate
No
Boost control solenoid
No
