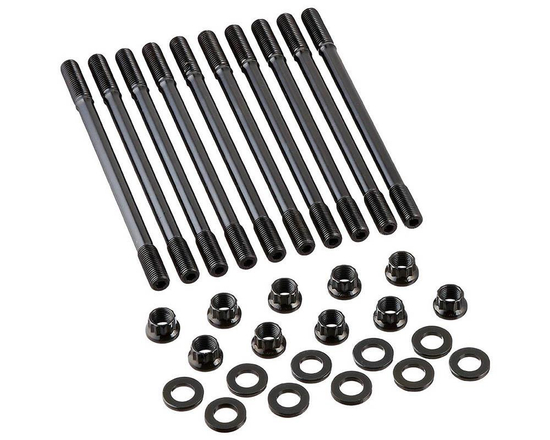

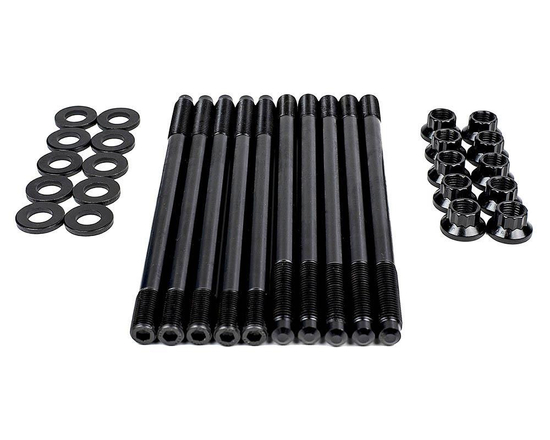

ARP 260-4301 head stud kit Subaru BRZ, Toyota GT86 FA20/4U-GSE

  • ARP 260-4301 head stud kit Subaru BRZ, Toyota GT86 FA20/4U-GSE
  • ARP 260-4301 head stud kit Subaru BRZ, Toyota GT86 FA20/4U-GSE
  • ARP 260-4301 head stud kit Subaru BRZ, Toyota GT86 FA20/4U-GSE
Producer: ARP
Product code: ARP 260-4301
Car make: Subaru, Toyota
Car model: BRZ, GT-86
Engine code: 4U-GSE / FA20
410,95 EUR
328,76 EUR
/ PCS
Before we process the order with this product, the prepayment in the amount of 164,38 EUR may be required. Detailed information will be provided in the order summary, before its placement.

Easy product returns

Buy a product and check it in your own time, at home.
You can return the product without providing a reason within 14 days.
Show details
14 days for a return
Your satisfaction is very important to us, therefore you can make a return without providing a reason within 14 days.
No stress and worry
Thanks to the integration with cheap returns you can purchase without stress and be sure that the return process will be hassle free.
Easy returns wizard
All returns processed by our shop are managed in a easy-to-use returns wizard which gives you the ability to send a return parcel.

For: Volvo 2.5L B5254

Obtaining the optimum cylinder head-to-block sealing is especially critical in small displacement engines employing high compression pistons or power adders like turbochargers, nitrous oxide and superchargers. That's why ARP® head studs are popular among leading Sport Compact/Import racers.

You should know that ARP® uses a premium grade 8740 alloy that is rated far superior to "aircraft" quality. Then, each stud is precisely heat-treated to 200,000 psi. Following heattreat, each stud is centerless ground to make it as close to perfectly concentric as possible. This procedure involves about ten very slight cuts and results in an exceptionally straight part. It's important to note that lesser quality studs are not even centerless ground—the material is thread rolled in bar stock form (mostly before heat-treat, when the material is easier to machine). Because ARP® studs are manufactured to such exacting tolerances, you will note that gaskets and cylinder heads literally glide into position and are perfectly aligned—something that won't happen with inferior quality head studs.

ARP® studs are thread rolled after heat-treat, which gives them about 1000% (that's ten times) better fatigue strength than those studs that are threaded prior to heat-treat.

You will also note that ARP® offers specially undercut studs for several engines. This procedure (done only to the shorter studs) more equalizes the "stretch" of both studs, which makes for a more consistent clamping force—one that compensates for head gasket compression when the head is installed. This helps prevent blown head gaskets, and assures optimum sealing!

Premium parallel ground washers are also included with each kit.

Tech specs:
Producer:
ARP
Material:
ARP 2000
Tensile strenght:
220000 psi
