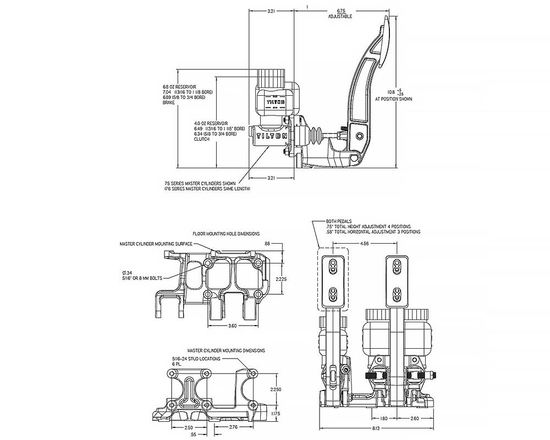

Tilton 72-604 600-Series 2-Pedal Floor Mount Assembly

For: universal

Tilton’s 600-Series pedal assemblies feature traditional fixed-mount master cylinder and balance bar technology and provide excellent performance at competitive prices. Pedal assemblies are available in floor-mount, firewall-mount and overhung configurations.

Features:

• Forged aluminum pedals with adjustable (vertical & horizontal) foot pads and anti-slip surfaces.
• Adjustable pedal ratios (5.29:1, 5.44:1, 5.61:1, 5.75:1) enable the brake pedal to be tuned to driver preference without having to change master cylinder bore size.
• Large diameter 7/16”-20 balance bar provides maximum rigidity. PTFE coated aluminum clevises for increased durability and reduced friction.
• Pedal pivots feature wave washers to reduce lateral pedal movement and oil impregnated bronze bushings decrease stiction.
• Lightweight aluminum frame features guide “ramps” to reduce balance bar tipping, decreasing friction and improving brake repeatability.
• Adjustable clutch pedal stop prevents clutch over-stroking.
