Product codeVFE VFK73-01
Car make: BMW
Car model: Series 3 E46 M3
Engine code: S54
11 355,32 EUR
11 013,71 EUR
/ set / incl. 23% VAT
Before we process the order with this product, the prepayment in the amount of 11 013,71 EUR may be required. Detailed information will be provided in the order summary, before its placement.
Easy return of products within 14days

For: BMW M3 E46 01-06

The VF-Engineering supercharger for the BMW E46 M3 S54 engine is the only water cooled supercharger system on the market. Designed to provide the most consistent charge temperatures under aggressive driving, the VF water intercooler system has a greater propensity to dissipate heat energy out of the air charge than an air intercooler.

VF use state of the art production manufacturing processes to create the highest quality supercharger kit on the market. A supercharger system designed with 3 stages of power, each stage up-gradable to the next, this piece of kit is for quality discerning enthusiasts only.

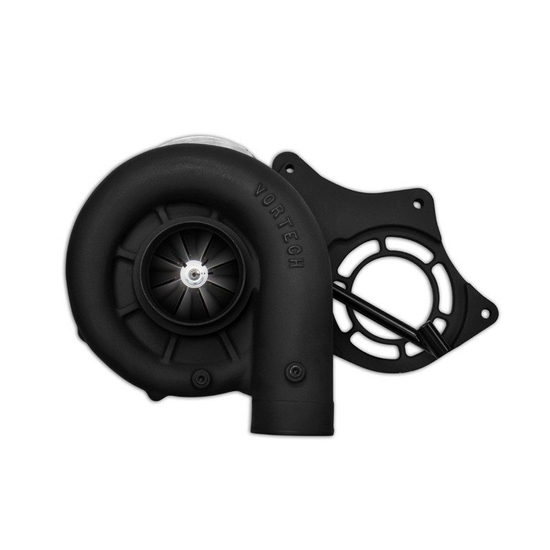

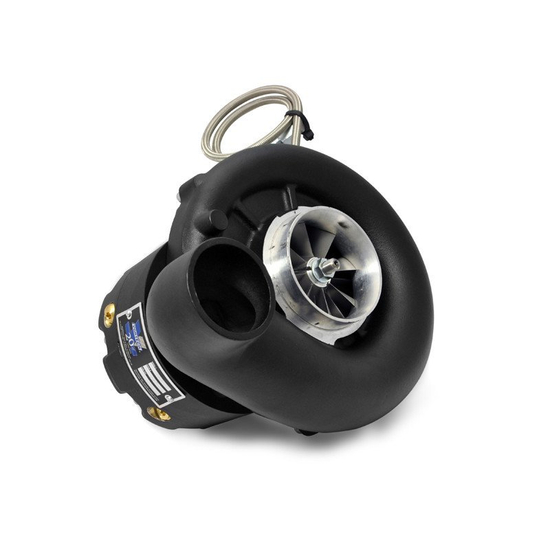

Based upon the Vortech V3 Si-trim Super Quiet unit, this unit is capable of supporting over 800hp. The centrifugal supercharger compressor maps ideally match the 8000 rpm revving S54 BMW Motorsport engine giving it a new meaning to high performance.

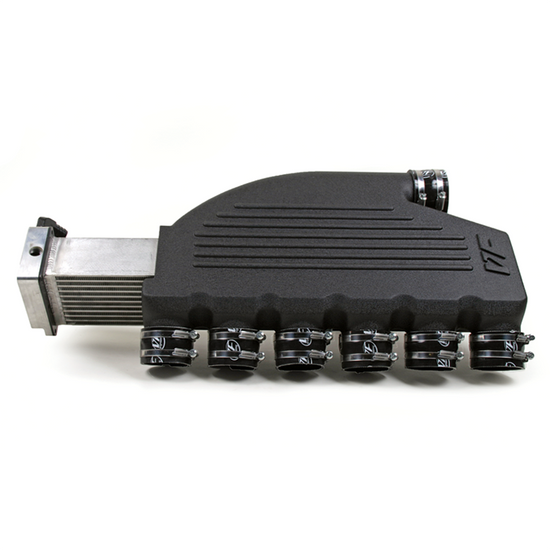

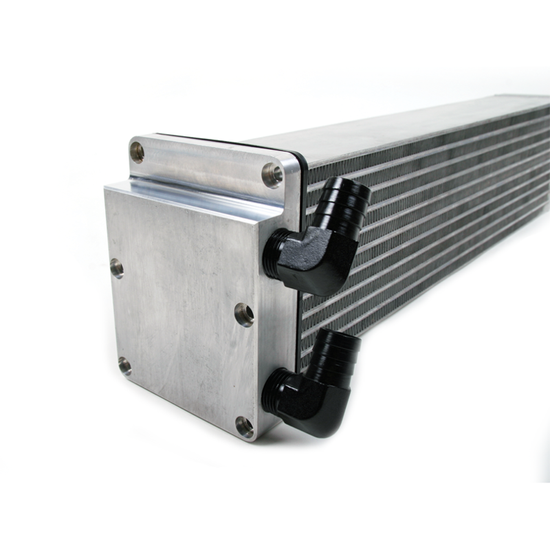

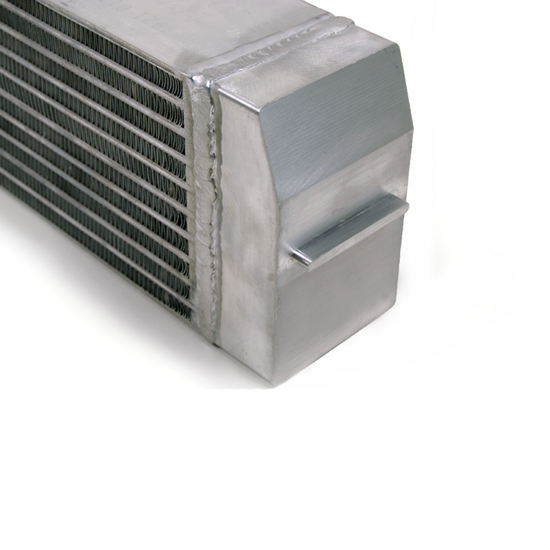

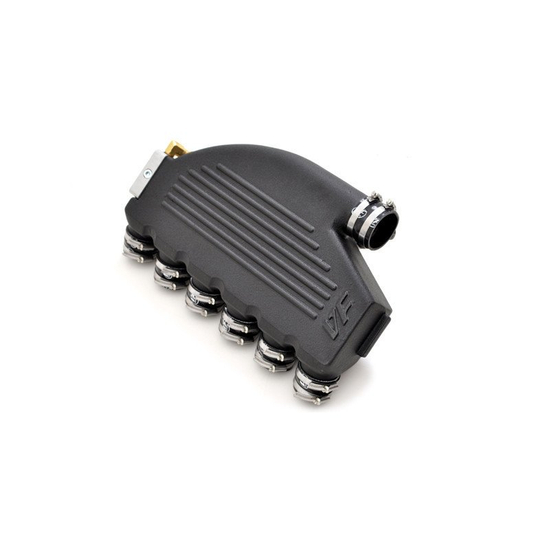

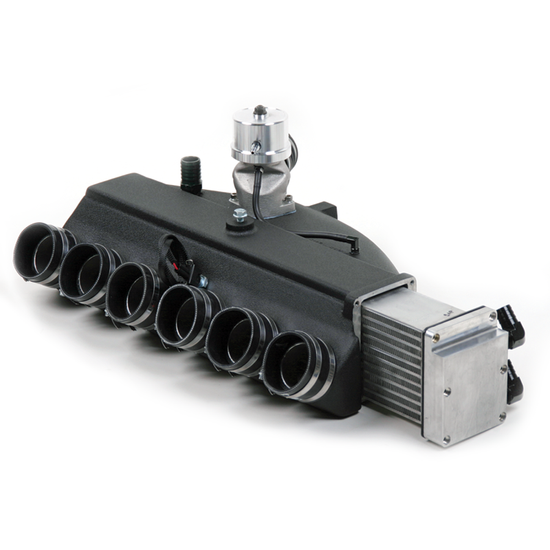

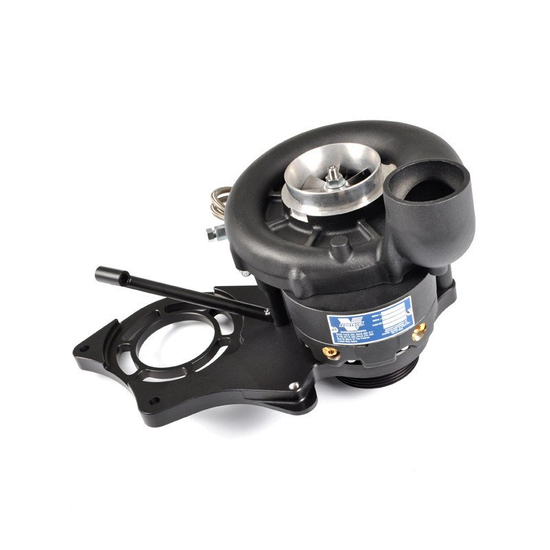

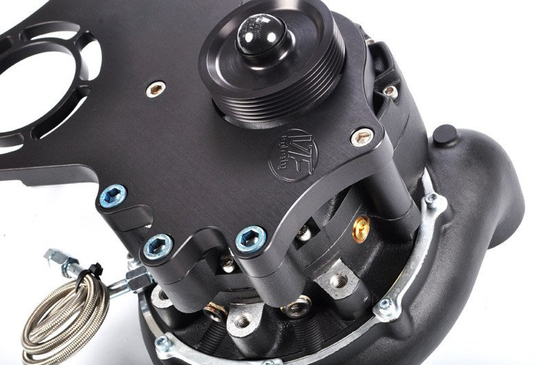

Machined from 6061-T6 aircraft grade aluminum the supercharger mounting bracket is triangulated to the engine block in addition to a Chrome Moly brace and grade 10.8 high tensile hardware. The factory belt tensioner is upgraded and the supercharger driven off an OEM quality multi-rib seperpentine belt. The factory plastic intake manifold is replaced with a VF cast aluminum plenum designed to channel the air from the supercharger to the 6 independent M3 throttle bodies. The VF plenum is designed to be upgraded with a slide-in high strength bar and plate heat exchanger for the upper 2 power level kits. The heat exchanger cools the intake air charge with isolated cold water circulating through it from a custom molded water reservoir, an OEM front mount radiator and water pump.

The high displacement bypass valve recirculates air charge off-throttle to minimize manifold pressure instantly. The bypass valve is mounted on a universal flange allowing you to opt for a blow off valve. The injectors are upgraded with high capacity Bosch EV14 high impedance quick response fuel injectors and  calibrated by re-tuned software flashed into the ECU through the OBD2 port. Each power level is tuned with a specific custom calibrated software version.

Software is programmed into your ECU using the optional “Hex-Flash” programming cable. You can program your ECU in 15 minutes yourself through the OBD2 connector on your dashboard. This tool also allows you to read and clear ecu codes.

Optional software features include:

  • RPM Shift lights activation for manual transmission vehicles. Manual cars can now experience the OEM shift lights on the RPM counter that the SMG vehicles already feature.
  • SPORT Button Memory. You have a choice of requesting to have the sport button permanently selected to Sport mode or you may opt to have the memory feature activated which keeps the sport button in the mode that the car was switched off in. You can keep it in Sport mode all the time (even after switching the car off) but can still switch it off.
  • Race Gas software. If you plan to use higher octane fuels, we can supply optimized software for higher octanes giving the benefit of added horsepower.
  • Independence. You may re-install your stock program at any time at your convenience. You may also program upgraded custom race gas files (available optionally from VF).
  • Valet mode/Immobilizer. If you are going to leave the car unused for a long period, you may wish to program our optional Valet Mode file or Anti-theft file.

Available to order from VF-Engineering directly or a distributor.

  • Vortech V3 Si-Trim supercharger
  • Cast intake manifold
  • Air water charge cooler system (optional)
  • Polypropylene water reservoir
  • OEM high density water radiator
  • Bosch water pump
  • Bosch fuel pressure regulator
  • Bosch EV14 fuel injectors
  • 1 Heat range cooler NGK spark plugs
  • Greddy Type-R bypass valve
  • Hard anodized 6061-T6 aluminum bracket
  • Chrome moly support bracket
  • OEM serpentine belt and tensioner
  • Cast aluminum intake

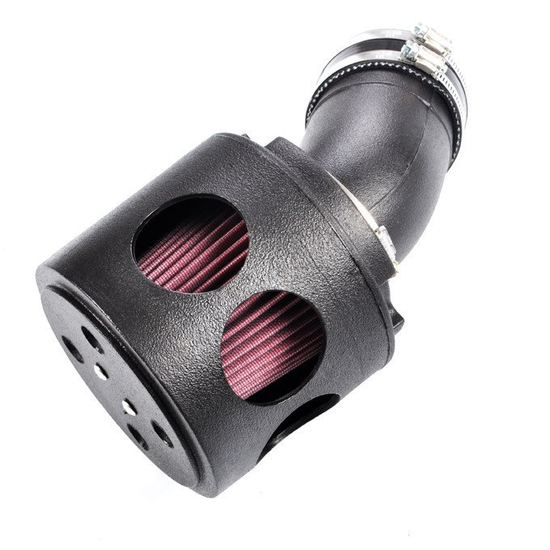

  • K&N induction filter with air box
  • Hex Flash ECU tuning programming cable (optional)
  • Install time 14 hours approx
  • Fully Reversible
  • Made in California, USA
Product code
VFE VFK73-01
Warranty
Car make
BMW
Car model
Series 3 E46 M3
Engine code
S54
Producer
VF Engineering
Stage
3
Power gain
+237 KM
Maximum torque
+160 Nm
Water intercooler
Included
Warranty
12 months
No warranty
No warranty
No warranty
