Turbosmart TS-0553-1011 Hyper-Gate 45 mm GenV WG45 external wastegate 14psi (blue)
The Gen-V WG45 Hypergate45 external wastegate is a cost effective, high performing 45mm external wastegate. The Gen-V provides extensive user configurability, world leading extended thermal performance, fatigue resistance and best in class flow performance for optimum control and longevity.
- Liquid cooling provision
- Strap type V-band clamps
- User adjustable actuator position
- Modular actuator design

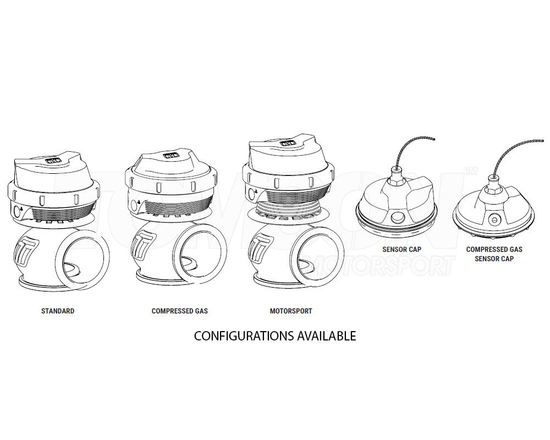

- Motorsport / Compressed Gas configurations available
The GenV WG45 HyperGate45 External Wastegate is a Motorsport proven, cost effective external wastegate – The highest flowing gate of its kind. The GenV provides extensive user configuration, world leading extended thermal performance, fatigue resistance and best in class flow performance for optimum control and longevity.
The GenV External Wastegate from Turbosmart was a ground up rework of a classic and the only feature that rolled over from the Gen4 range was the mounting orientation. CFD optimized and validated in-house for maximum flow and thermal management, the GenV range has more features, options and performance than any other gate like it.
A direct fit upgrade to all Gen4 Turbosmart wastegates and feature our unique collar-locking system, variable actuator cap and base for easy, 360 degree optional routing of reference hoses, strap-type V-band clamps, optional liquid-cooling provision, 1/8″ NPT reference ports and are provided with the full range of available springs.
Included in the box:
- Wastegate unit (pre-assembled with spring as per order)
- SS316 Valve seat
- Inlet V-Band
- Inlet SS304 weld flange
- Outlet V-Band
- Outlet SS304 weld flange
- Collar tool (master/slave)

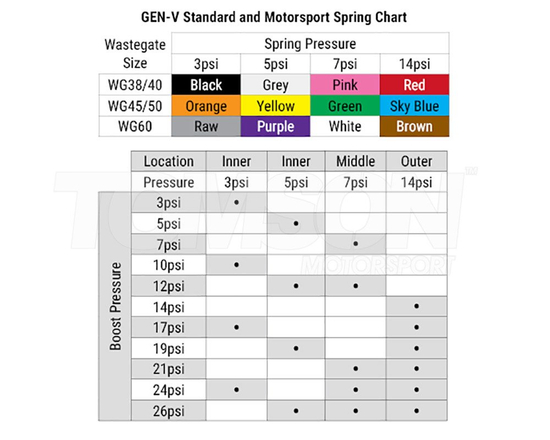

- 17/7 PH 3, 5, 7, 14 psi spring kit (1x spring installed)
- 4x 1/8” NPT plugs (1x installed) / 2x 1/8” NPT nipples
- Sticker
- Instruction card

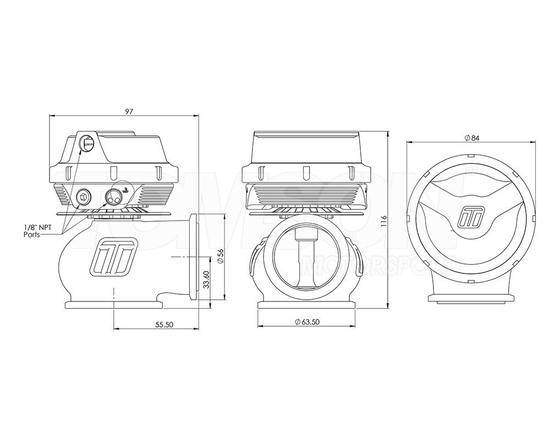

Mechanical data:
- Valve diameter 45mm
- Mass 1006g
- Actuator linearity 1.02% of full lift (BFSL)
- Set pressure accuracy +/- 0.5 psi of base pressure
- Safe working pressure max. 220 psi / 1520 kPa / 15 bar
- Safe inverted pressure max. 180 psi / 1250 kPa / 12.5 bar
- Actuator life 550k cycles @ 180ºC ambient
- 800k cycles @ 80ºC ambient
- Actuator/Valve ratio 2.07:1
- Max. spring base pressure 26 psi / 180 kPa / 1.8 bar
- Min. spring base pressure 3 psi / 21 kPa / 0.2 bar
- Port fittings type Air: 2x 1/8” NPT top chamber
- Air: 2x 1/8” NPT lower chamber
- Liquid Cooling: 2x 1/8” NPT
- Port fittings type Air: 2x 1/8” NPT top chamber
- Air: 2x 1/8” NPT lower chamber
- Liquid Cooling: 2x 1/8” NPT
Thermal data:
- Max. thermal stress (non-cooled)* >45min @ 1250ºC EGT continuous
- Max. thermal stress (h2O cooled)* >24hr @ 1250ºC EGT continuous
- Max. ambient/compartment temp. 260ºC / 500ºF
- Max. actuator temp. 310ºC / 590ºF
Material data:
- Main Body High temp 347 SS
- Diaphragm Proprietary Silicone w/ nomex
- Actuator housing 6061 T6 anodised Al.
- Valve Guide Nitronic 60
- Valve EV8 w/ proprietary plating
- V-Band Heat treated 431 SS w/ 18-8 nut
- Weld Flanges 304 Stainless Steel
- Springs 17/7 PH Stainless Steel
- Beryllium (Be) 0%
Flow data:
- Max. Flow 193.6 CFM/5.48m3/min @1psidP
- Flow Linearity -18% of full lift (BFSL)
