Producer: Garrett
Product code: GAR 836026-5021S
Warranty: No warranty
1 114,61 EUR
1 080,96 EUR
/ PCS

Easy product returns

Buy a product and check it in your own time, at home.
You can return the product without providing a reason within 14 days.
Show details
14 days for a return
Your satisfaction is very important to us, therefore you can make a return without providing a reason within 14 days.
No stress and worry
Thanks to the integration with cheap returns you can purchase without stress and be sure that the return process will be hassle free.
Easy returns wizard
All returns processed by our shop are managed in a easy-to-use returns wizard which gives you the ability to send a return parcel.

Garrett® GT Series is the name that pioneered turbo technology and boosted drag racing and road racing teams to break hundreds of world records. The GT Series lineup is offered in both journal and ball bearing options, and sizes ranging from GT2052 to GT3582. The cast compressor wheels feature original GT Series aerodynamics and provide maximum durability and longevity. Internally wastegated turbine housing options are available in all GT Series sizes. Turbine kits are offered in open volute and twin scroll, and a variety of A/R and flange configurations. For any performance need, GT Series turbochargers have you covered.

Features:

  • Original GT Series aerodynamics
  • Internally wastegated turbine housing
  • Non wategated turbine housings available
  • Sold as a complete turbo (includes turbine kit and actuator)
  • Ball bearing configuration with water cooled CHRA
  • V-band turbine housing options

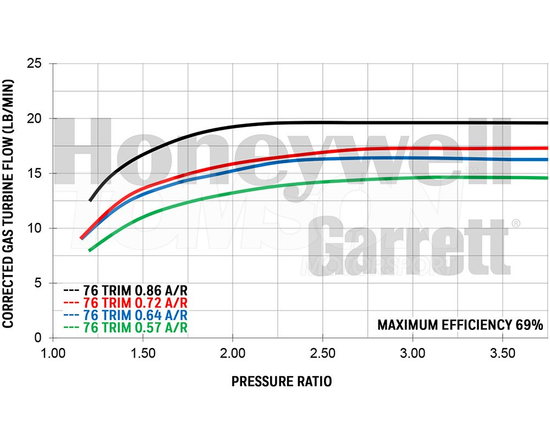

Garrett GT2871R turbine housing options:

  • 0.64 A/R T25 (internal WG) P/N 827690-0005
  • 0.86 A/R T25 (internalWG) P/N 827690-0004
  • 0.57 A/R V-Band (external WG) P/N 827690-0001
  • 0.72 A/R V-Band (external WG) P/N 827690-0002
Tech specs:
General
Producer:
Garrett
Series:
GT
Power range:
280-475 KM
Engine capacity:
1.8-3.0 l
Bearings:
Dual ball bearing with water cooling
Warranty:
12 months
Compressor side
Compressor wheel:
Steel
Compressor inlet:
76 mm (3")
Compressor wheel outer diameter:
71 mm
Compressor wheel inducer diameter:
53 mm
Compressor outlet:
50.8 mm (2")
BOV:
No
Turbine side
Turbine wheel:
Steel
Exhaust inlet:
T25 Single Scroll
A/R:
0.64
Turbine wheel outer diameter:
54 mm
Turbine outlet:
T25 5 bolt
Wastegate:
Built-in
Boost control solenoid:
No
