Race Technology CAN interface for Motec M400 M600 M800 ECU

What is the CAN interface?

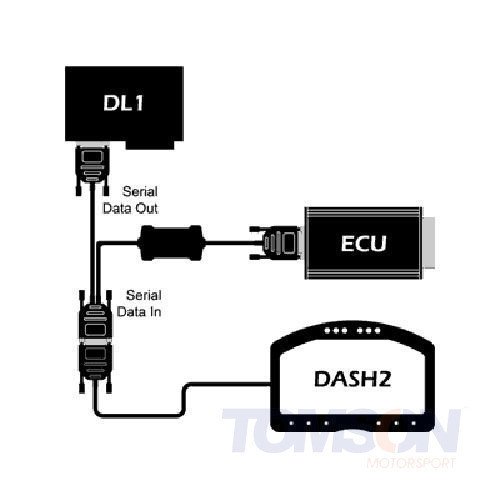

The Race Technology CAN interface is a small in-line module for use with a DASH1 or DASH2 display, a DL1 or DL2 data logger or any combination of data logger plus display, to allow data from your engine management system to be displayed and recorded.
Who is the CAN interface designed for?

The CAN interface is designed for anyone wishing to read vehicle or drive train sensor data directly from their ECU or other CAN device, without the need for additional sensors. Common parameters such as engine speed, coolant temperature, throttle position, etc, are normally available from the ECU, so no additional sensors would be required if using the CAN interface. This leaves the analogue input channels on your data logger free for connection to more specialised sensors, not normally monitored by your ECU (eg: suspension travel). ECUs are being added to the compatibility list all the time. Please contact Race Technology to confirm compatibility with your ECU.

NOTE: The CAN interface is only compatible with CAN BUS vehicles / ECUs. If in doubt please consult your vehicle agent or ECU manufacturer.
Key Features
Compatible with Race Technology displays and data loggers as stand alone units, or as part or a data logger and display system
CAN and serial models available, compatible with a wide range of ECUs
Receive data from existing vehicle sensors via your ECU - no need to add additional sensors for data logging
All channels from ECU are in addition to the channels already provided with the Race Technology data logger/display
CAN interface fully user configurable with software supplied. Programable for virtually any vehicle or ECU using standard CAN protocols. Select which channels to receive and decode
Upgradeable firmware. Both the CAN and serial interfaces are flash upgradeable with firmware updates
Inline electronics encased in a tough injection moulded case
Supplied with cables, instruction manual and comprehensive software CD
