ATL CL-AA-027 Internal Collector System 3.0L - 2 Walbro Pump Mounts

The ATL Internal Collector Systems fit within ATL Saver cells and provide an optimum solution to reduce fuel starvation under hard cornering or acceleration/braking in fuel injection systems.

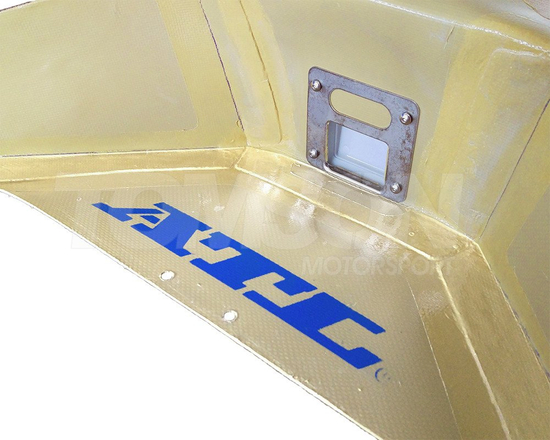

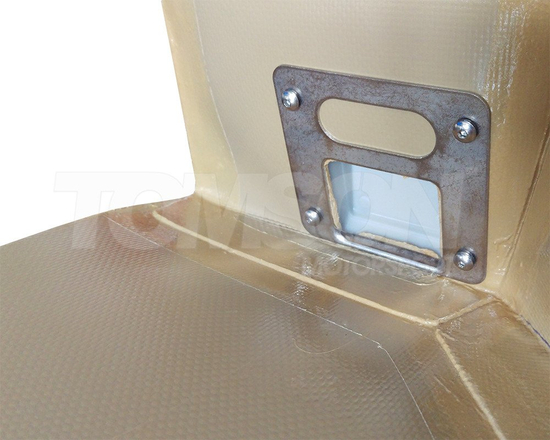

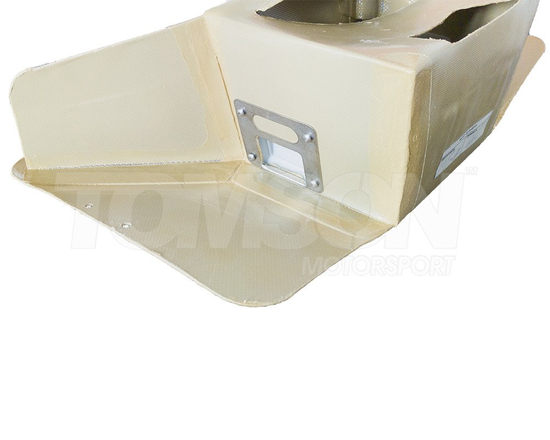

The ATL Internal Collector range is manufactured from ATL’s lightweight Nylon reinforced material that complies with FIA/FT3-1999 specification. Each item in the range features a 3 litre capacity whilst also containing 3 x ATL specification one-way trap doors and 2 x Guiding Vanes to optimise fuel scavenge under cornering and acceleration forces. Where applicable, there is also a small strap on the floor of the collector to keep the pick-up sock filter from touching the Trap Doors. The large base of the ATL Internal Collector allows the in-tank foam baffle to be cut and shaped, to keep the Collector in place within the fuel cell.

The collectors have been developed to suit Bosch, AC or Walbro fuel pumps (which are available separately), and are a required to be installed within Saver cells when installed with fuel injected systems due to the high pressure nature of the fuel supply.

Images are for illustration purposes only and actual collector supplied may differ slightly, please refer to description.
