ESS Tuning VT2-525 Supercharger System (Gen.2) BMW E46 M3 S54

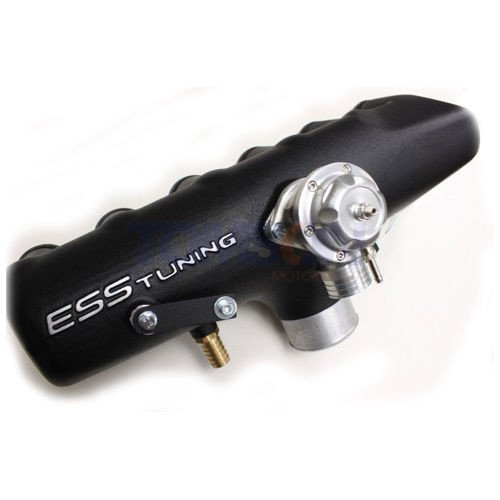

The ESS S54 VT2-525 SC system is based on the Vortech V3Si supercharger unit capable of 775HP. The systems are full systems including, 20mm Certal aluminum main bracket for superior rigidity, custom molded high temperature kompressor inlet housing, cast aluminum intake manifold with integrated high capacity bypass valve system, high-capacity front mount intercooler system and custom tuned ESS ECU software with removed dyno limiter and top speed governor. Fueling is provided by new, larger direct replacement Bosch Motorsport fuel injectors.

With an extremly effecient design and perfectly tuned software the ESS S54 M3 VT Series supercharger system delivers supercar performance along with the quality and reliability ESS customers have come to expect. This kit is designed as a 100% bolt on package with no irreversible custom fabrication to the vehicle.

The VT2-525 is easily upgradeable as the inevitable power addiction sets in. The same basic V3Si supercharger unit and major hardware components are used all the way up to our VT3-700 version of the kit.

And, like all ESS supercharger systems, the S54 VT Gen.2 kits are tuned and tested for over 50,000 street and track miles on multiple vehicles throughout the world, 60+ hours on our load dyno, full load top speed endurance testing on the German Autobahn, and final certification laps on the Nurburgring. Additionally, all of our systems include our standard 2yr/unlimited mileage warranty program and our renowned customer service and support.

*The ESS E-Flash OBD2 cable option allows the end user to upload the supercharger ECU software directly to the car from any PC running Windows XP or newer. The system also includes full diagnostic and code clearing capability. Any future ESS software updates can be received by email and loaded directly to the car. The stock ECU software will be saved and can easily be restored in the future.

System components:

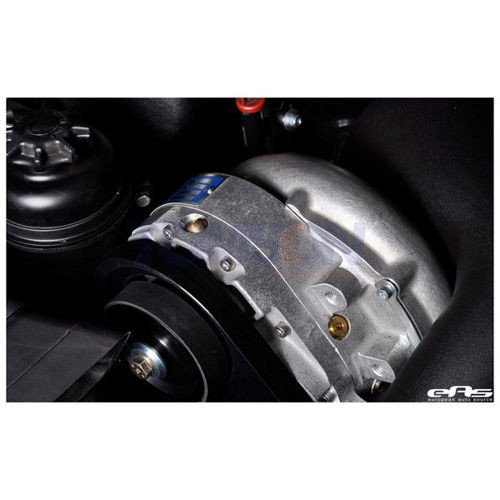

-Vortech V3Si internally lubricated supercharger unit.
-High capacity front mount intercooler system (FMIC).
-High capacity, direct replacement fuel injectors.
-One belt driven w/self tension system.
-CNC machined, hard anodized brackets.
-CNC hard anodized pulleys.
-Long life serpentine drive belt.
-True OBDII, perfectly optimized MSS54/54HP ECU software
-Removed top speed governor.
-Powder-coated mandrel bent tubing
-5 layer super strenght silicone hose throughout system.
-K&N cold air intake located inside front bumper.
-High capacity bypass-valve system.
-Oil breather assembly designed for boost.
-Detailed and illustrated installation manual.
-2yr./unlimted mileage warranty.
-100% maintenance free operation.
-Installation time : 6-8 hours

VT2-525 specs :
Boost pressure: 8 PSI

Horsepower: 525 SAE/529 DIN (50% increase over stock)
Torque: 340 lb-ft
