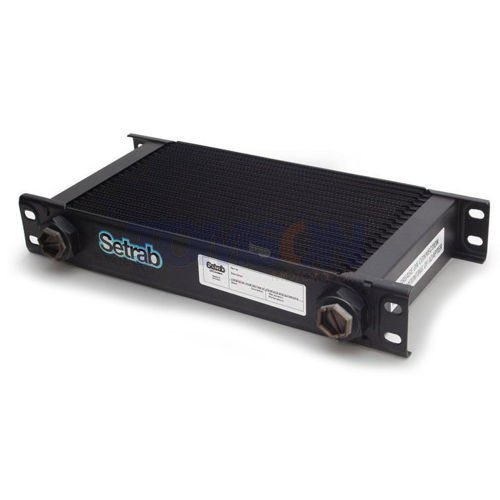

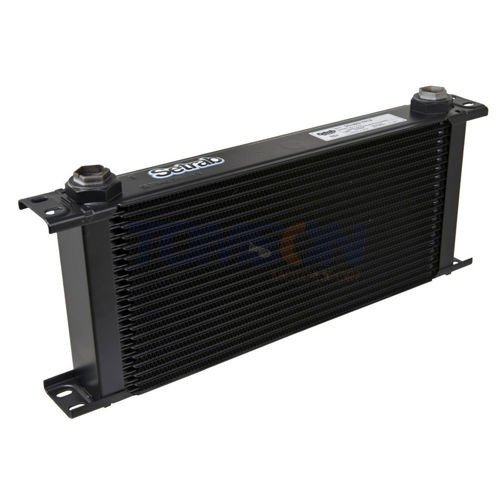

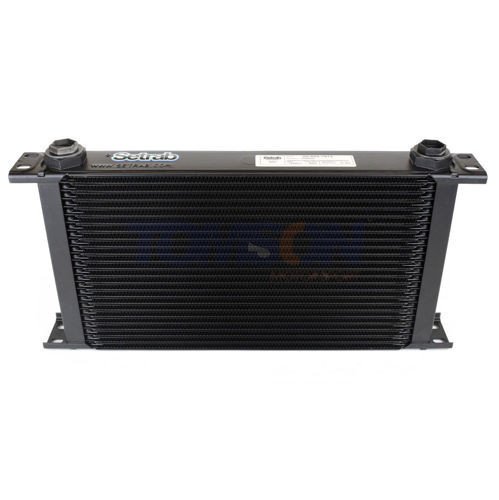

Setrab 50 Row, 235 mm Matrix Oil Cooler
Easy return of products within 14days
For: universal
Setrab ProLine STD range oil coolers are the most flexible high-performance oil coolers on the market. The ProLine STD series integrates low-profile 22mm female ports for adaptability to any system using ProLine adapter fittings.
The stacked-plate style of Setrab's STD range offers the advantage of many height possibilities within the various series' widths. In addition, this technique coupled with state-of-the-art brazing technology makes for a durable, highly-efficient, and beautifully simplistic design that is often imitated but never replicated.
Producer
Product code
SET 50-650-7612
Warranty
Producer
Setrab

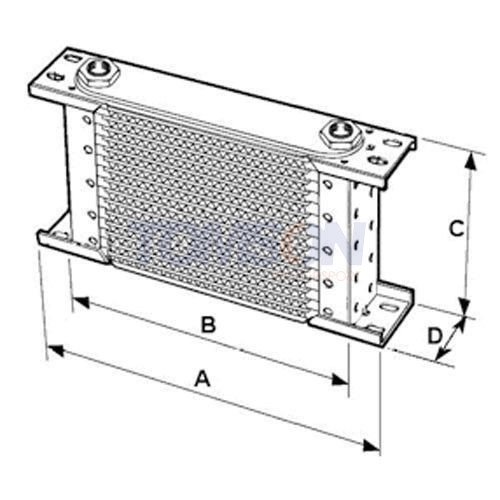

Overall width (A)
330
, 00 mm
Core width (B)
282
, 96 mm
Core height (C)
389
, 00 mm
Depth (D)
50
, 00 mm
Rows
50
Thread diameter
M22x1.5 (inside)
Rozstaw wyjść
242
, 32 mm
Working pressure
0-10 bar
Maximum pressure
12 bar
Temperatura pracy
-40°C to 150°C
Material
Aluminium
