Product codeEFR 179355
3 230,02 EUR
3 131,91 EUR
/ pcs / incl. 23% VAT
Before we process the order with this product, the prepayment in the amount of 1 565,96 EUR may be required. Detailed information will be provided in the order summary, before its placement.
Easy return of products within 14days

For: universal

Clean-sheet concepts. Loaded with innovations. Engineered For Racing.

What kind of turbocharger would you build for your high-performance car? The engineers in BorgWarner’s Advanced Aftermarket Product group created a wish list of every notable design characteristic. They used materials that had never been combined into an aftermarket turbocharger. They delivered quick boost response, powerful performance and reliable durability.

The EFR (Engineered For Racing) turbochargers from BorgWarner offer an unprecedented combination of advanced technologies:

  • Low-weight Gamma-Ti turbine wheels and shaft assemblies for quick boost response
  • Patent-pending dual ceramic ball bearing cartridges for more thrust capacity, durability and turbine efficiency at low expansion ratios
  • Stainless steel turbine housing for increased efficiency, improved durability and corrosion resistance

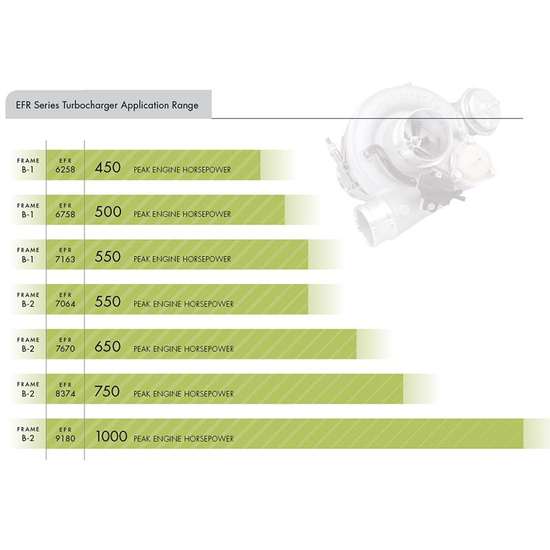

  • Range of units supporting 225 to 1,000 horsepower per turbocharger

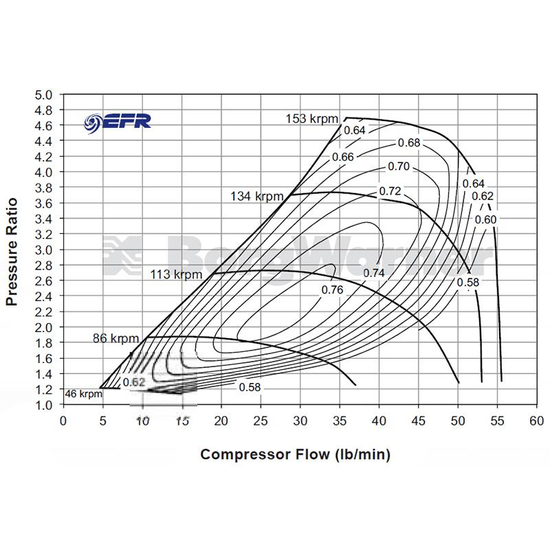

The Borg Warner EFR 7064 is the 4th size (#4 of 7) turbocharger in the high performance EFR line up. The 52.2mm inducer, 70mm exducer Fully Machined Wheel (FMW) compressor flows 56lb/min & will support 550 HP. Truly remarkable for a wheel of it's size. Extremely quick spool & high HP output in a compact frame size. Unrestricted 3.50" air inlet, 2.00" slip-on coupler outlet with integrated Vband option allows use of a standard silicone connector or burst-proof V-band flange & clamp. The BW EFR 7064 is suitable for rally, drift, road racing, auto X, street & drag.

The EFR 7064 is available in three different turbine housing configurations:

  • 0.83 A/R T3 undivided (internal WG)
  • 0.92 A/R T4 twinscroll (internal WG)
  • 1.05 A/R T4 twinscroll (external WG)

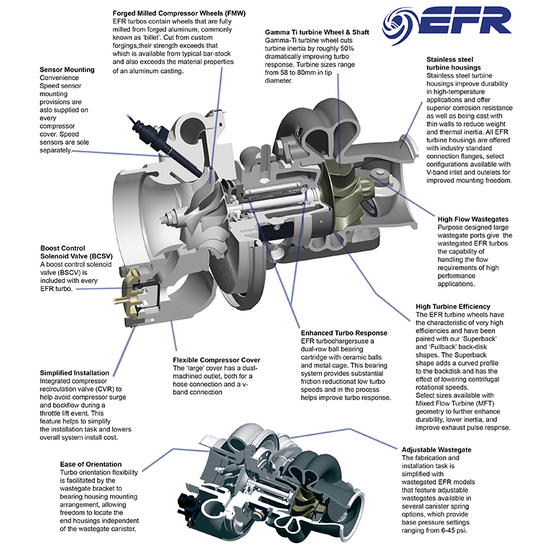

Features:

  • Gamma-Ti turbine wheel
  • Integrated Compressor Recirculation Valve (CRV)
  • Dual ceramic ball bearing assembly with metal cage
  • Boost Control Solenoid Valve (BCSV)
  • Forged Milled Compressor Wheel (FMW)
  • Extended tip technology
  • Compressor cover with speed sensor mounting provisions
  • 3" v-band turbine outlet (92 mm output diameter) for all EFR turbos
  • Watercooled Center Section - watercooling is recommended (14mm banjo bolts)
  • Double seals on both turbine and compressor end for extreme durability and resistance to any oil seepage
Product code
EFR 179355
Warranty
General
Producer
Borg Warner
Series
EFR
Power range
300-550 KM
Engine capacity
1.8-3.0 l
Bearings
Dual row ceramic with water cooling
Warranty
12 months

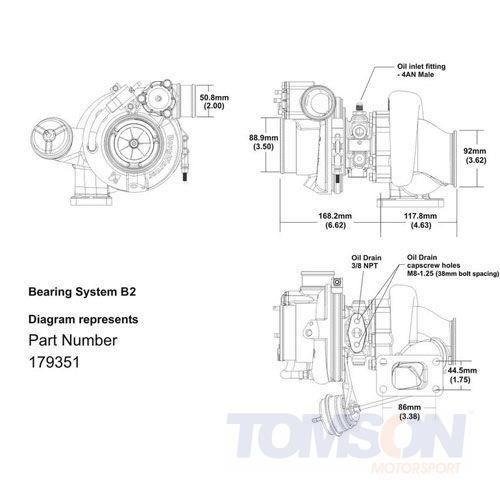

Compressor side
Compressor wheel
Forged Milled Compressor Wheel (FMW)
Compressor inlet
88.9 mm (3.5")
Compressor wheel outer diameter
70 mm
Compressor wheel inducer diameter
52 mm
Compressor outlet
50.8 mm (2")
BOV
Built-in
Turbine side
Turbine wheel
Gamma-Ti (Gamma Titanium)
Exhaust inlet
T3 Single Scroll
A/R
0.83
Turbine wheel outer diameter
64 mm
Turbine outlet
92 mm (3" v-band)
Wastegate
Built-in
Boost control solenoid
Built-in
