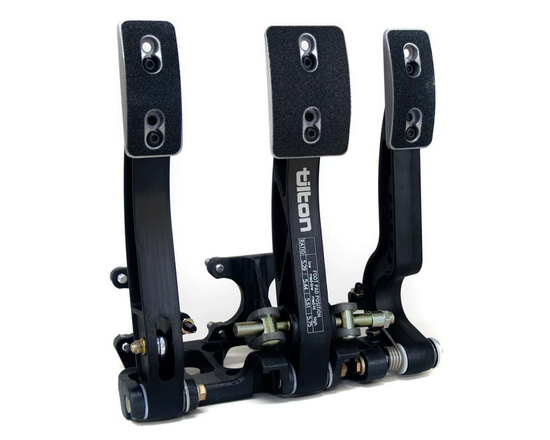

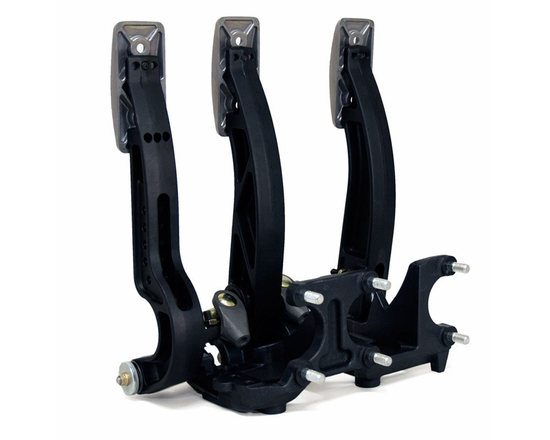

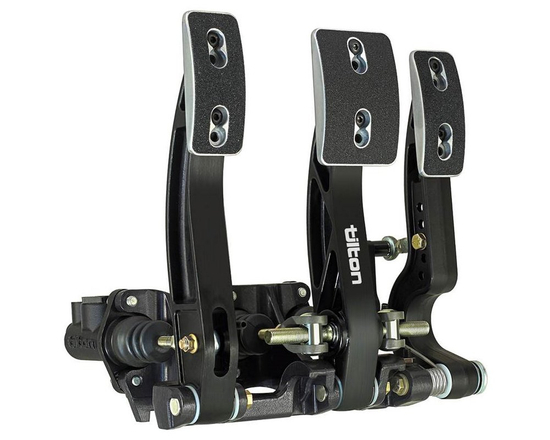

Tilton 72-603 600 Series Floor Mount 3 Pedal Assemblies

These Tilton floor mount pedal assemblies feature a dual-pedal design that fits triple master cylinders. They can easily be mounted to the floor and are available with high-strength steel construction and a gold iridited finish. The Tilton floor mount pedal assemblies have an adjustable 4.5:1 to 6.0:1 ratio, so you can fine-tune the pedals to your driving style.

Tilton Brake Pedal Box to latest specification.
Mounting location: Floor mount
Pedals: Aluminium or steel brake and clutch
Master cylinders: 3 (Not Included)
Pedal assembly is fully optimised for strength, stiffness and weight using Finite Element Analysis (FEA).
Adjustable clutch pedal stop prevents clutch over-stroking (P/N 72-606 only).
Aluminium pedals with adjustable foot pads and anti-slip surfaces (P/N 72-602 & 72-605).
Fabricated steel pedals with anti-slip surfaces (P/N 72-606).
Lightweight aluminium frame features guide "ramps" to reduce balance bar tipping. By decreasing balance bar tipping, friction is decreased and brake repeatability is improved.
Large diameter 7/16"-20 balance bar, allowing front/rear brake bias adjustments, minimizes flex to provide a solid pedal feel/response. Teflon coated aluminium clevises for increased durability and reduced friction.
Pedal pivots feature wave washers to reduce lateral pedal movement and oil impregnated bronze bushings decrease stiction.
