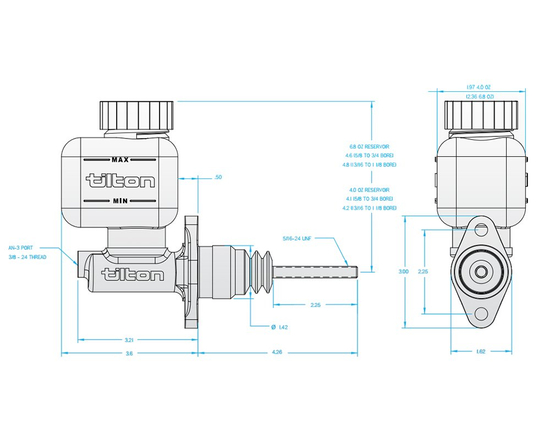

Tilton 75-700U 75 Series Master Cylinders Bare Cylinder 0.700''

Items supplied in either Kit form or as a bare cylinder
Reliable seal/piston design.
Black anodised aluminium alloy body
29mm of stroke provides sufficient fluid displacement for a variety of applications.
Industry standard 2.25" (57mm) (center-to-center) Flange Mount
AN3 (3/8" x 24 ) outlet port
Weighs 286gms (varies by bore size)

Tilton 75-Series master cylinders are designed for applications where space limitations require a compact master cylinder. Tilton 75-Series master cylinders are 61mm shorter than 74-Series master cylinders, but maintain 28mm of stroke. Available either as a universal kit which includes master cylinder, 114ml and 193ml reservoirs (with filters and clamps),remote reservoir mounting components and fittings or as a bare cyliner.
Please Note: If ordering a bare cylinder you will require either a Tilton reservoir or a Tilton remote inlet adaptor.
