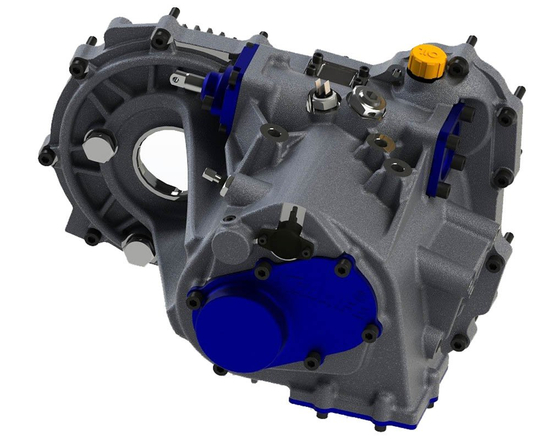

Quaife QKE8J five-speed sequential gearkit Honda Civic Type R EP3, FN2, Integra DC5
Strengthened outer casing and five wider than standard gears
Ultra fast sequential gearshift with straight cut or helical close-ratio gears
Retains stock EP3 / FN2 / DC5 clutch, diff, driveshafts and mounts
LED digital gear position indicator available as cost option
Optional Quaife ATB for both standard driveshafts (QDF9U) and 28T DSS uprated shafts (QDF17U)
Responding to requests from numerous customers for a stronger, high performance affordable gearbox solution for the popular Honda Civic Type R, transmission specialist Quaife Engineering is delighted to launch an innovative 5-speed sequential gearkit for the EP3 and FN2 versions of the car (which also fits the grey import Integra DC5 and the US only Acura RS-X and TS-X models.) Carrying part number QKE8J, the gearkit will debut at the Autosport International Show 2013 and is designed as a direct replacement for the standard six-speed H-pattern Honda transmission.
Designed by Quaife to overcome the performance and road gearing compromises of the stock six-speed synchromesh gearbox, the QKE8J gearkit converts the factory Honda transmission into a faster shifting five-speed, dog engagement sequential unit featuring wider, stronger, close-ratio gears, ideally suited to the rigours of circuit racing, drag, rally and trackday use.
QKE8J features a compact, drum style sequential gearchange mechanism and an open face dog design to ensure an ultra rapid, positive sequential gearshift that transforms the car’s performance, indeed Quaife has designed QKE8J to be fully compatible with electronic engine management systems to allow for near seamless full throttle ‘flatshifting.’
The Quaife QKE8J Honda gearkit features a replacement Quaife outer gearbox case incorporating an additional support bearing between 4th and 5th gear. By comparison, the original Honda design relies on bearing supports located at either end of the gearbox shafts – a potential weak point, particularly for cars running highly tuned K20A engines.
QKE8J re-uses the original EP3/FN2/DC5 bellhousing half of the transmission casing, enabling the retention of the Honda clutch, differential, driveshafts and mounting points. The main advantage of this layout is that it allows for an easy installation into the EP3, FN2, DC-5, Acura RS-X and TS-X models without extensive additional modifications.
Wide straight cut (spur) close-ratio gears minimise transmission losses and offer a choice of rally, race or drag race gearing. There is also the choice of a helical gearset for road and track day applications and the QKE8J Honda sequential gearkit comes supplied with a floor mounted gear lever and gearshift cable.
A Quaife LED digital gear position indicator is also available as an optional cost extra.
With a highly competitive price of £4095.00 excluding taxes, QKE8J will be on sale from January 2013. Gear ratio details include:-
Available Gear Ratios:-
1st 2nd 3rd 4th 5th
3.100 2.067 1.421 1.048 0.870 - Drag Set (straight-cut / spur)
3.100 2.067 1.611 1.333 1.136 - Rally Set (straight-cut / spur)
2.417 1.611 1.263 1.000 0.852 - Race Set (straight-cut / spur)
2.400 1.600 1.261 1.038 0.857 - Road/Track Helical Set
Available Final Drive Ratios
4.357 / 4.750 Straight-cut (spur) 4.750 Helical
PLEASE NOTE: An optional Quaife automatic torque biasing helical gear limited slip differential is also available for QKE8J, in two variants; QDF9U for Honda K20A engined cars running standard driveshafts and (QDF17U) for drag orientated Honda’s using 28 spline Driveshaft Shop Pro-Level driveshafts.
